Exterior Covers

SM 4-17 D146/D147/D148/D149/D150

Replacement

and Adjustment

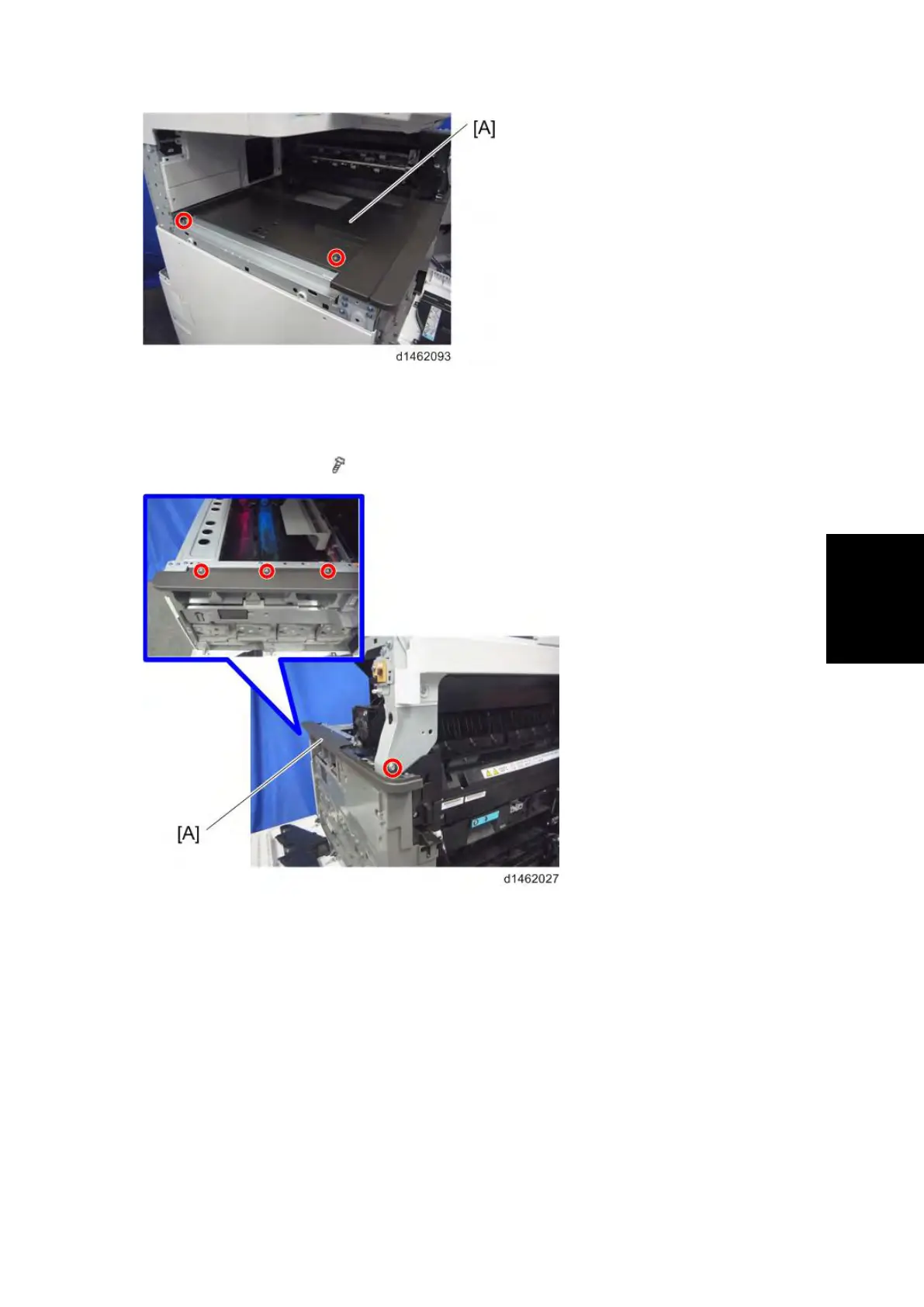

4.4.19 PAPER EXIT FRONT COVER

1. Paper exit lower cover (page 4-16 "Paper Exit Lower Cover")

2. Paper exit front cover [A] ( ×4)
