Proof paper eject sensor

D686/D687 14 SM

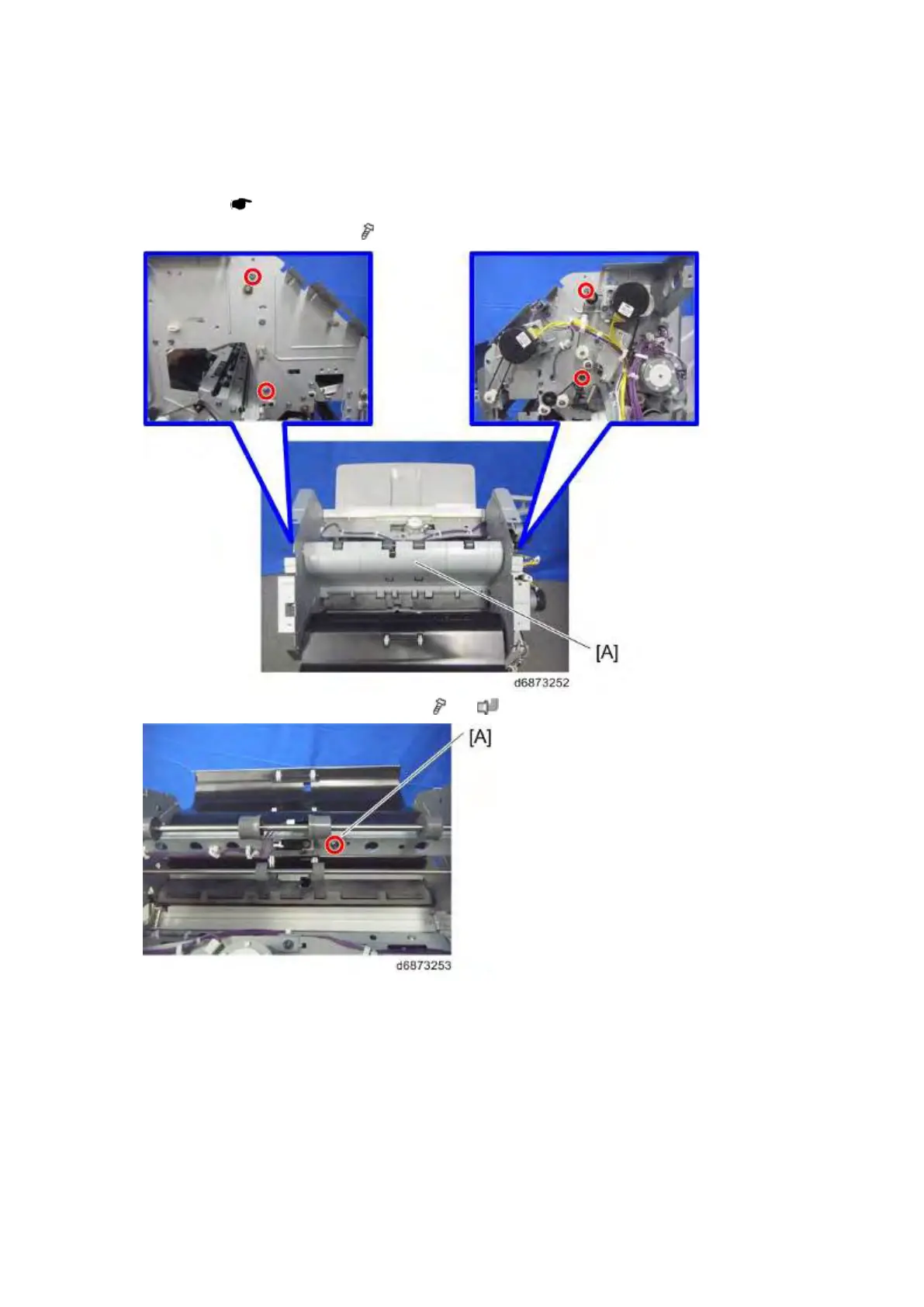

1.5 PROOF PAPER EJECT SENSOR

1. Proof tray ( page 7)

2. Proof transport bracket [A] (

×4)

3. Proof paper eject sensor bracket [A] (

×1, ×1)

4. Proof paper eject sensor [A]
