Ricoh D148 - Paper Feed Sensor

To Next Page

To Previous Page

Paper Feed

SM 4-123 D146/D147/D148/D149/D150

Replacement

and Adjustment

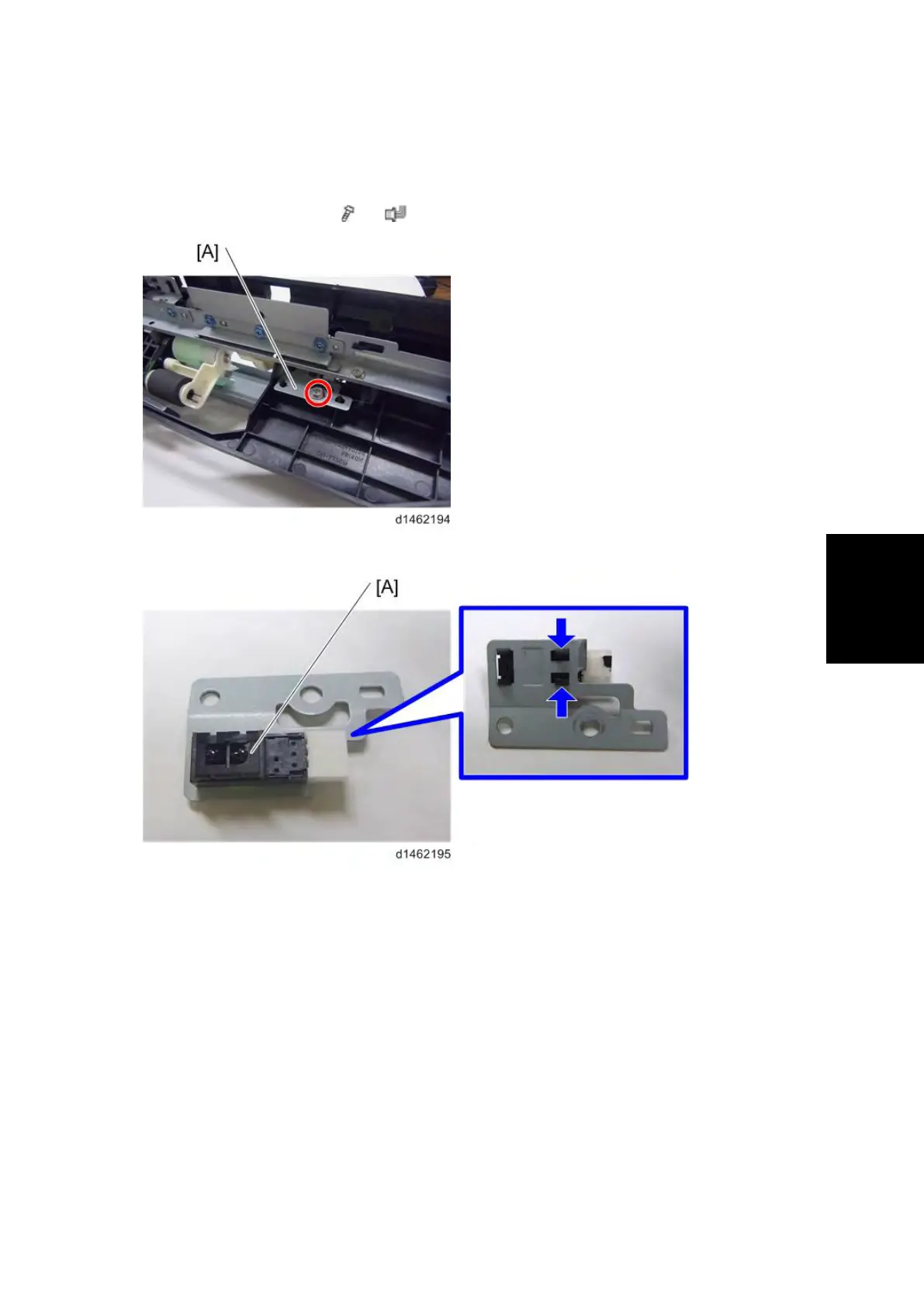

4.14.5 PAPER FEED SENSOR

1. Paper feed unit (page 4-117 "Paper Feed Unit")

2. Paper feed sensor unit [A] ( ×1, ×1)

3. Paper feed sensor [A]
