1.13 REMAINING PAPER SENSOR

1. Rear cover ( page 1)

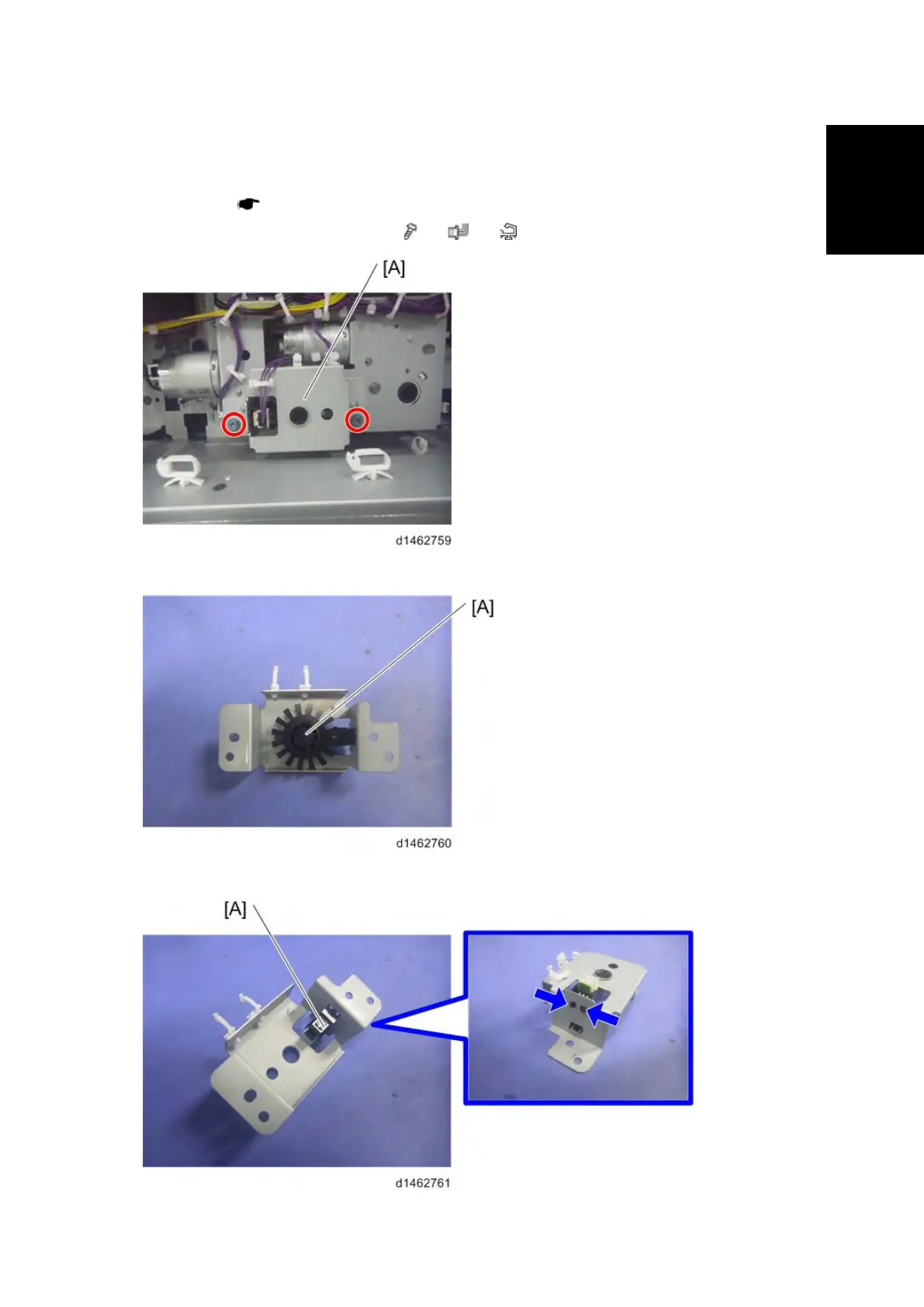

2. Remaining paper sensor unit [A] (

×2, ×1, ×3)

3. Actuator [A]

4. Remaining paper sensor [A]
