ADF Control Board

D683 18 SM

1.12 ADF CONTROL BOARD

1. ADF rear cover (page 8 "ADF Rear Cover")

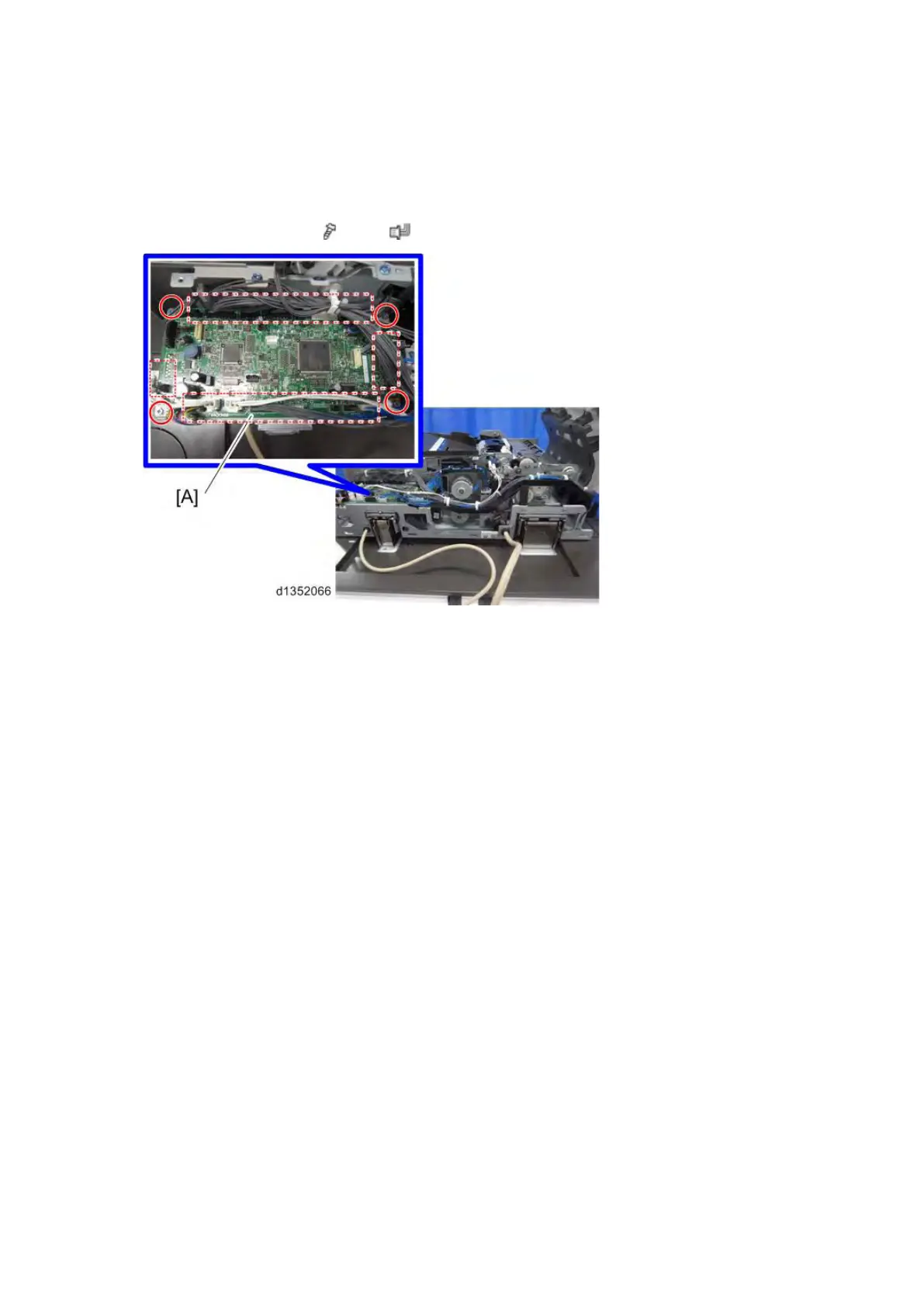

2. ADF control board [A] (

×4, all s)
