Paper Feed Sensor, Paper End Sensor, Limit Sensor, Transport Sensor
D696 14 SM
1.12 PAPER FEED SENSOR, PAPER END SENSOR, LIMIT
SENSOR, TRANSPORT SENSOR
1. Upper cover ( page 4)

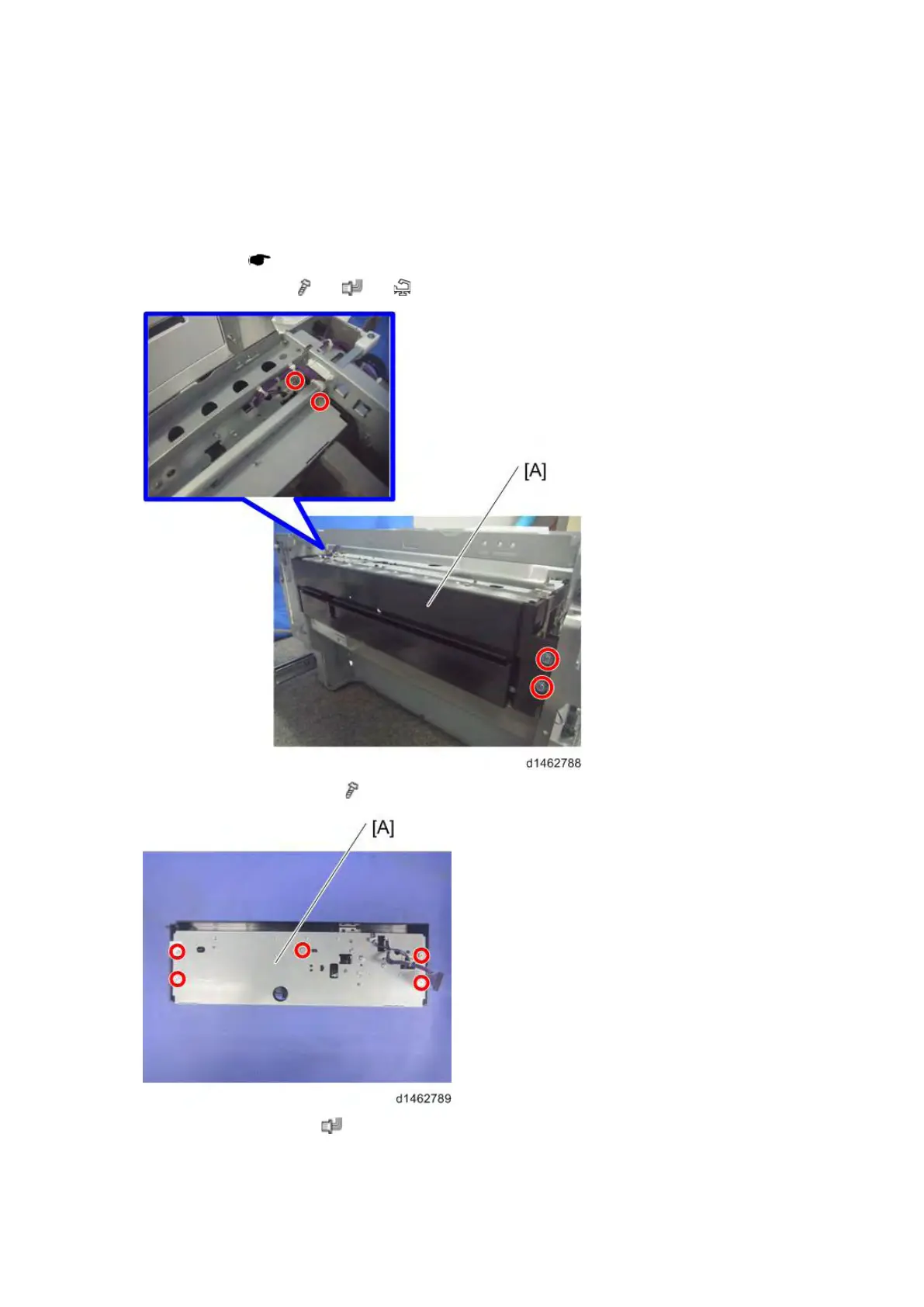

2. Paper feed unit [A] (
×2, ×1, ×2)
3. Paper feed unit cover [A] (
×5)
4. Paper feed sensor [A] (
×1)
To Next Page
