Controller Board

D693 6 SM

1.6 CONTROLLER BOARD

1. Rear cover ( page 1)

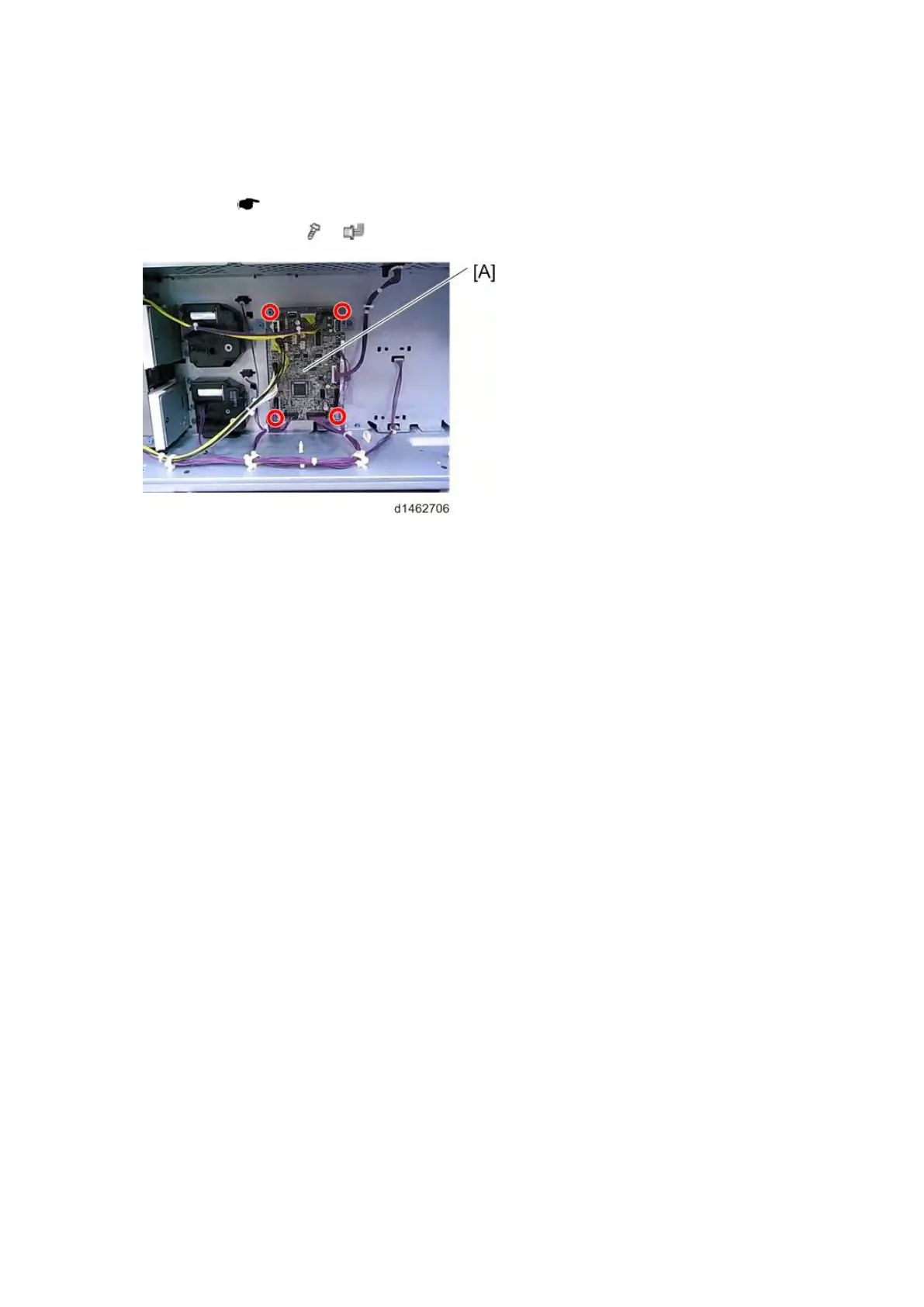

2. Controller board [A] (

×4, ×10)
