Ricoh D148 - Scanner Hp Sensor

Scanner Unit
SM 4-35 D146/D147/D148/D149/D150
Replacement
and Adjustment
4.6.8 SCANNER HP SENSOR
1. Scanner upper cover (page 4-27 "Scanner Upper Cover")
2. Exposure glass (page 4-29 "Exposure Glass")

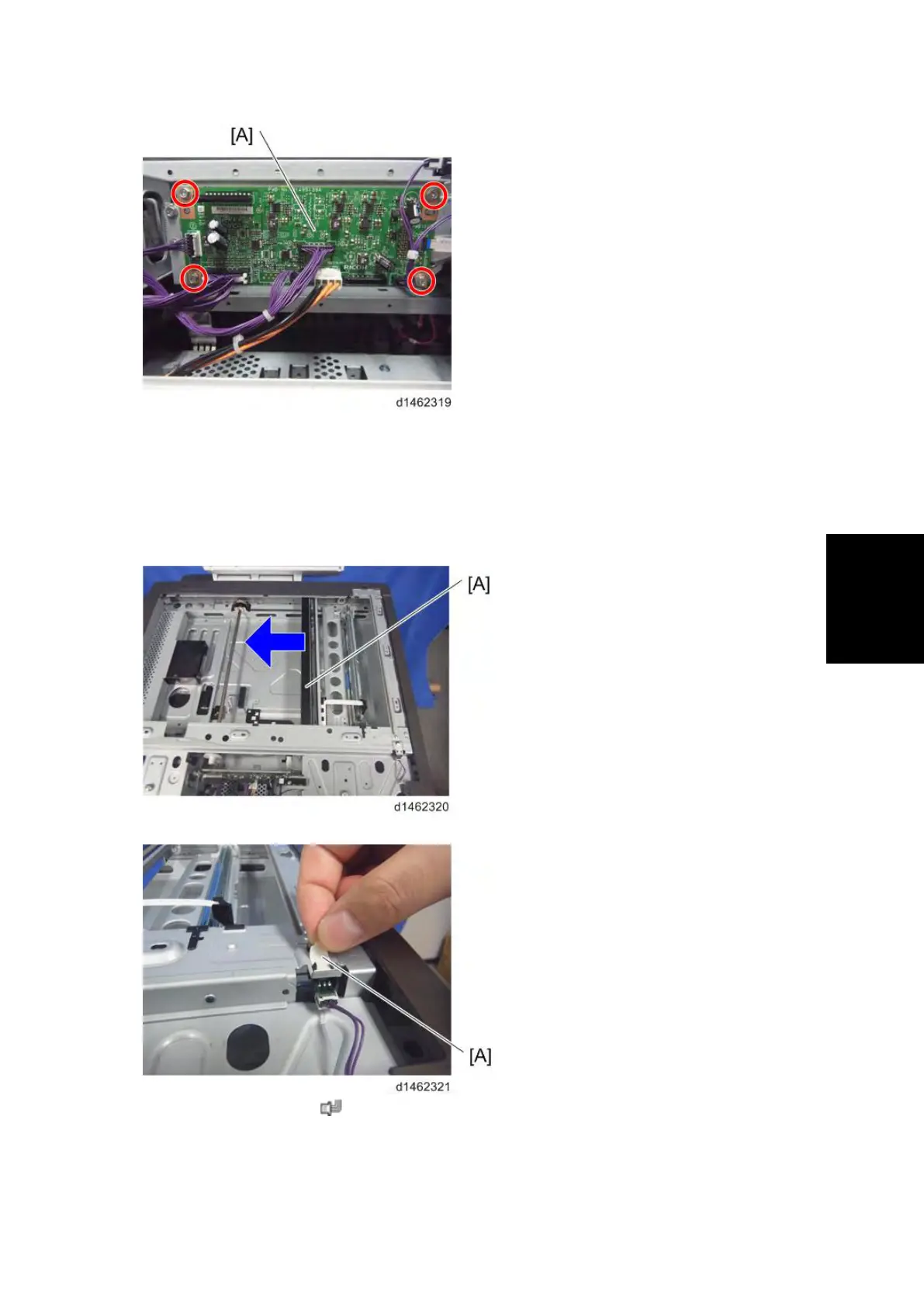

3. Slide the exposure lamp (1st scanner carriage) [A] in the direction of the arrow a little.
4. Peel off the sensor stopper [A].
5. Scanner HP Sensor [A] (
×1)
