Ricoh D148 - 1 St Paper Feed Unit

To Next Page

To Previous Page

1st Paper Feed Unit

D693 14 SM

1.9 1ST PAPER FEED UNIT

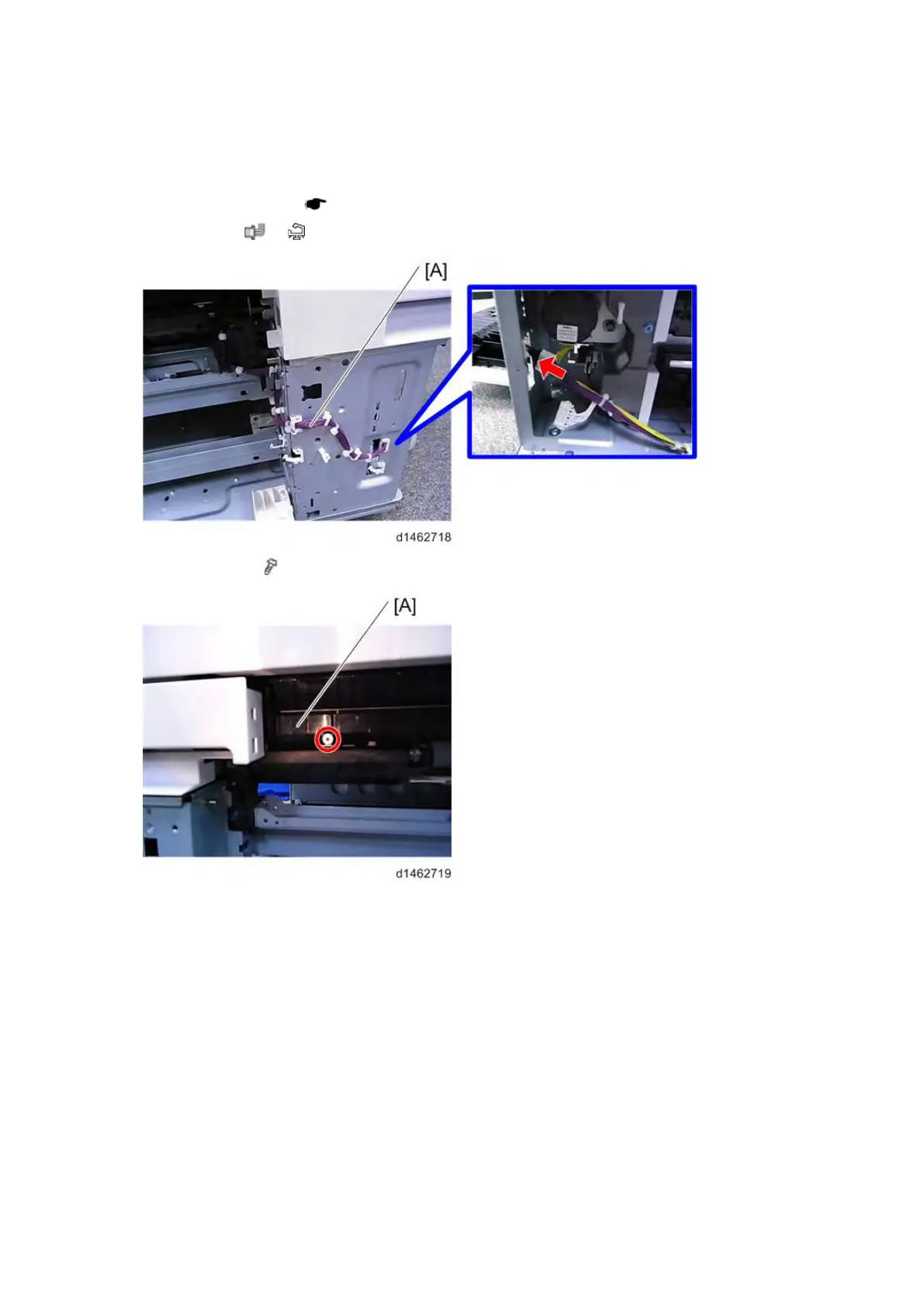

1. 2nd Paper feed unit ( page 10)

2. Harness [A] (

×1, ×6)

3. Guide plate [A](

×1)
