Right Tray, Left Tray

D695 2 SM

1.2 RIGHT TRAY, LEFT TRAY

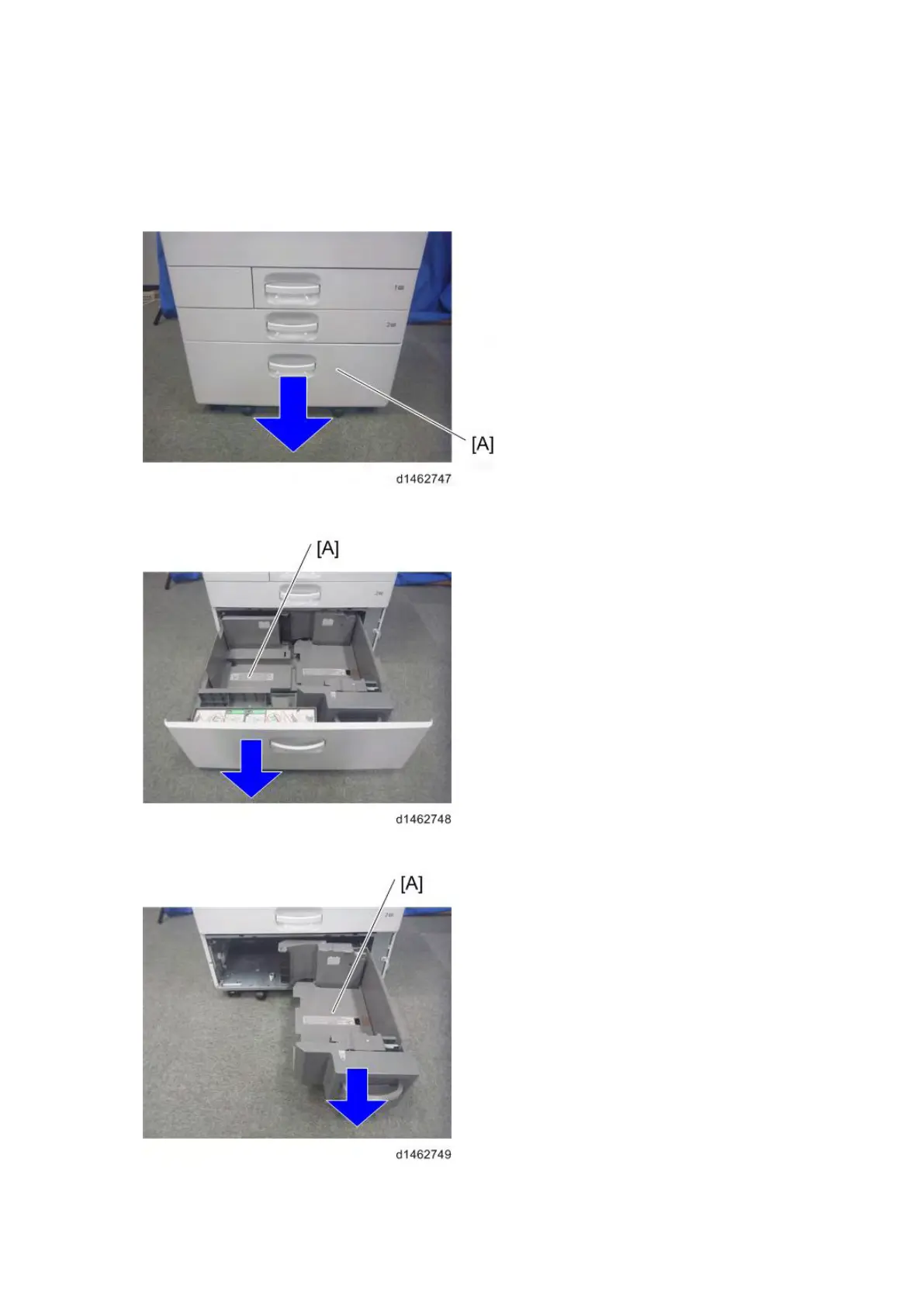

1. Pull out the paper tray.

2. Left Tray [A]

3. Right Tray [A]
