Paper Feed

SM 4-119 D146/D147/D148/D149/D150

Replacement

and Adjustment

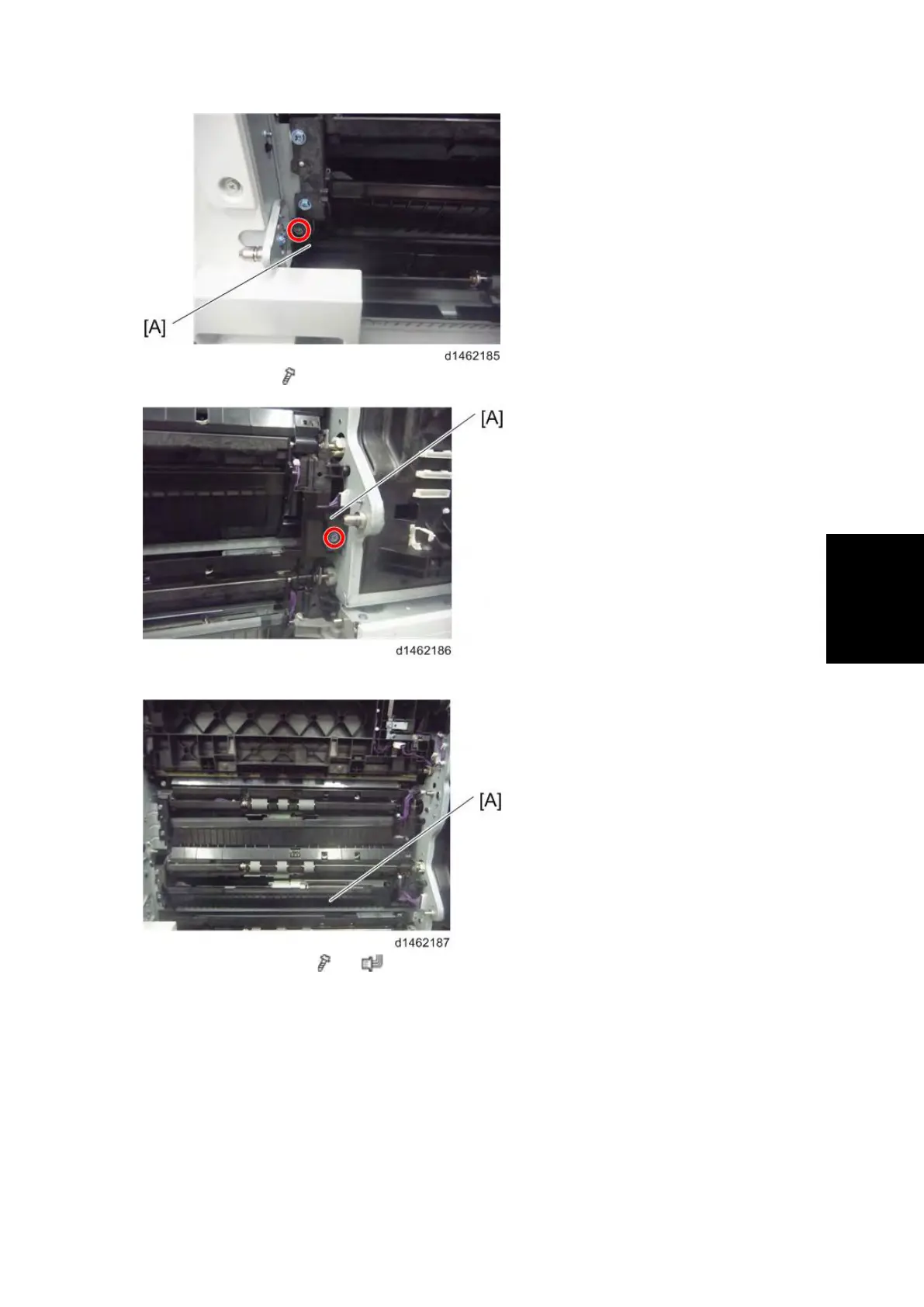

4. Harness guide [A] (

×1)

5. Paper feed guide plate [A]

6. 2nd paper feed unit [A] (

×2, ×1)
