Drive Unit
SM 3-49 G133
Replacement
Adjustment

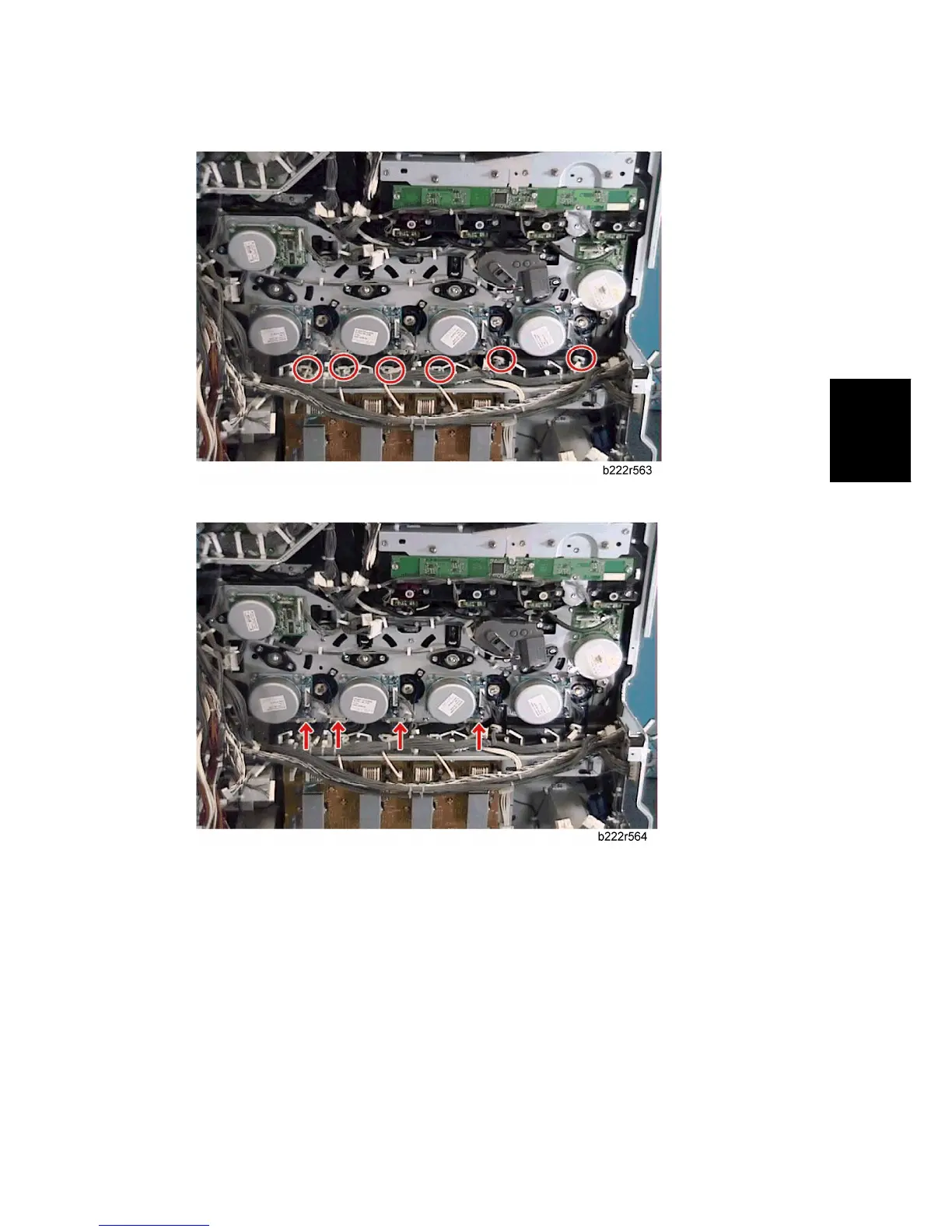

10. Release seven clamps and turn each harness aside.
11. Disconnect four connectors (red arrows).
