Fusing
SM 3-75 G133
Replacement
Adjustment
c) Secure the stepped screws [A] at the rear side tightly after securing the stepped
screw [B] and stud screw [C] at the front side.
d) Install the pressure adjustment bracket, and then secure the other screws.
3.10.4 FERRITE ROLLER GEAR
1. Fusing unit ( "p.3-3 "Fusing Unit" ")

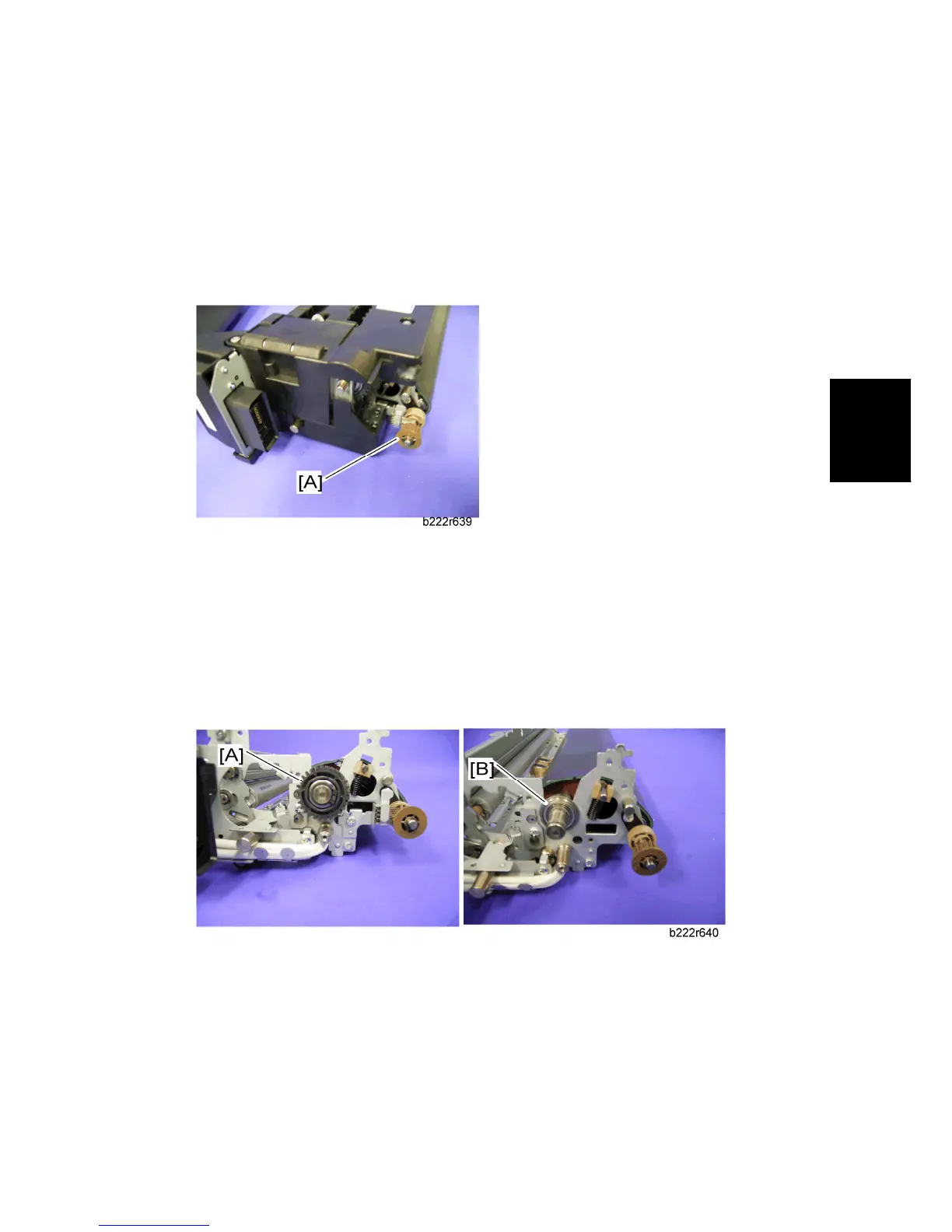

2. Ferrite roller gear [A] ( x 1)
3.10.5 FUSING ROLLER BUSHING AND TENSION ROLLER
BUSHING
1. Fusing unit ( "p.3-3 "Fusing Unit" ")
2. Fusing right cover, fusing upper cover ( "p.3-3 "Fusing Lamp"")
3. Pressure Roller ( "p.3-3 "Pressure Roller and Pressure Roller Bearing"")
4. Fusing roller gear [A] (C-ring x 1)
5. Fusing roller bushing [B] (C-ring x 1) at the rear side
