Side Fence (Front)
1. Do the common procedure for removing the side fences (Front, Rear). (page 35 "Common
Procedure for Removing the Side Fences (Front, Rear)")

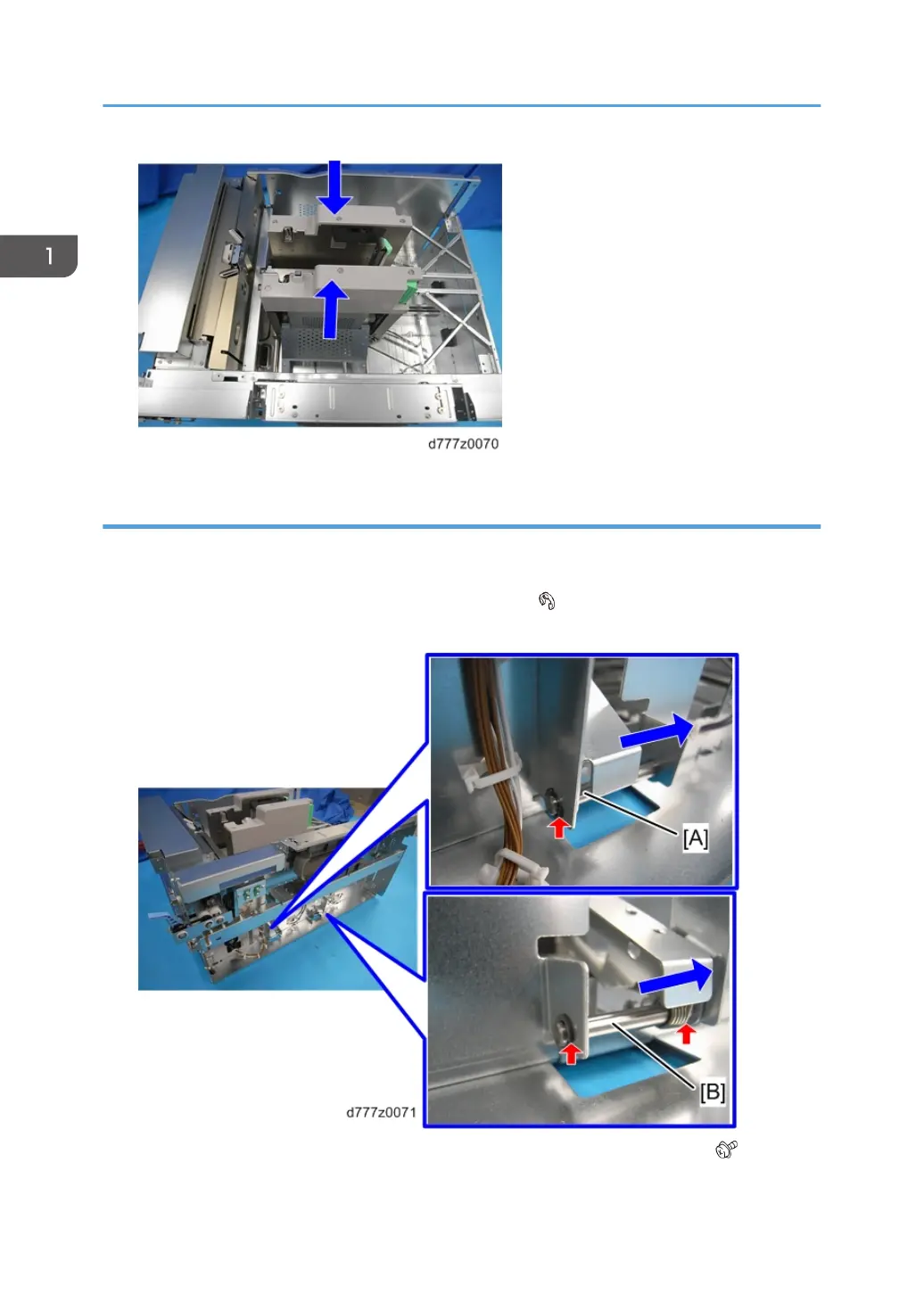

2. Remove the side fence shafts [A] and [B] on the front side ( x2). Pull out the shaft in the direction of
the arrow. The [B] shaft has a spring.
3. Insert a screwdriver in the opening in the frame and remove the ground connection ( x1).
1. Replacement and Adjustment
38
