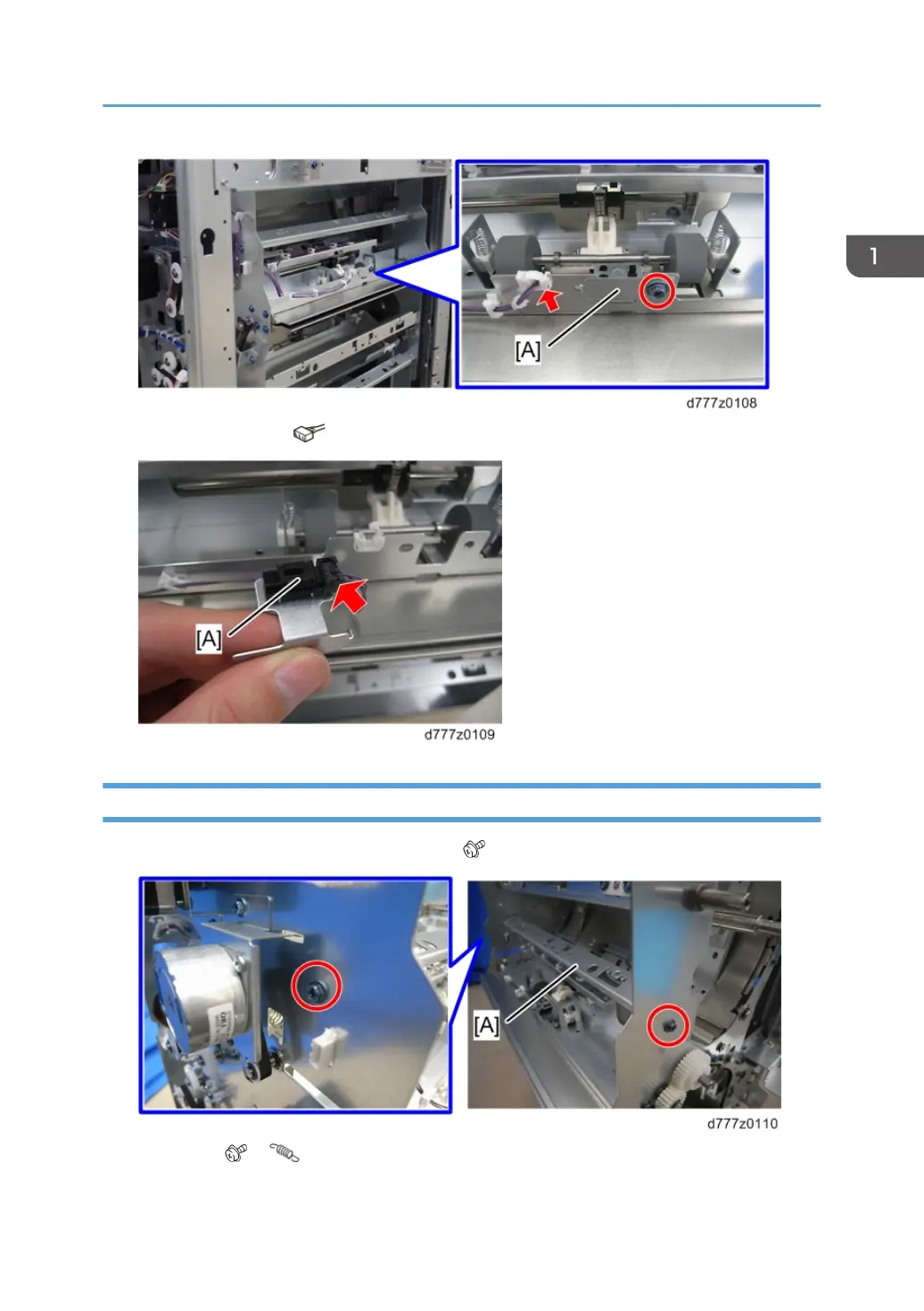

2. LCIT exit sensor 1 [A] ( x1)
LCIT Exit Roller Contact Sensor
1. Remove the stay [A] from the vertical feed unit ( x2).
2. Bracket [A] ( x1, x1)
Vertical Feed Unit
77
