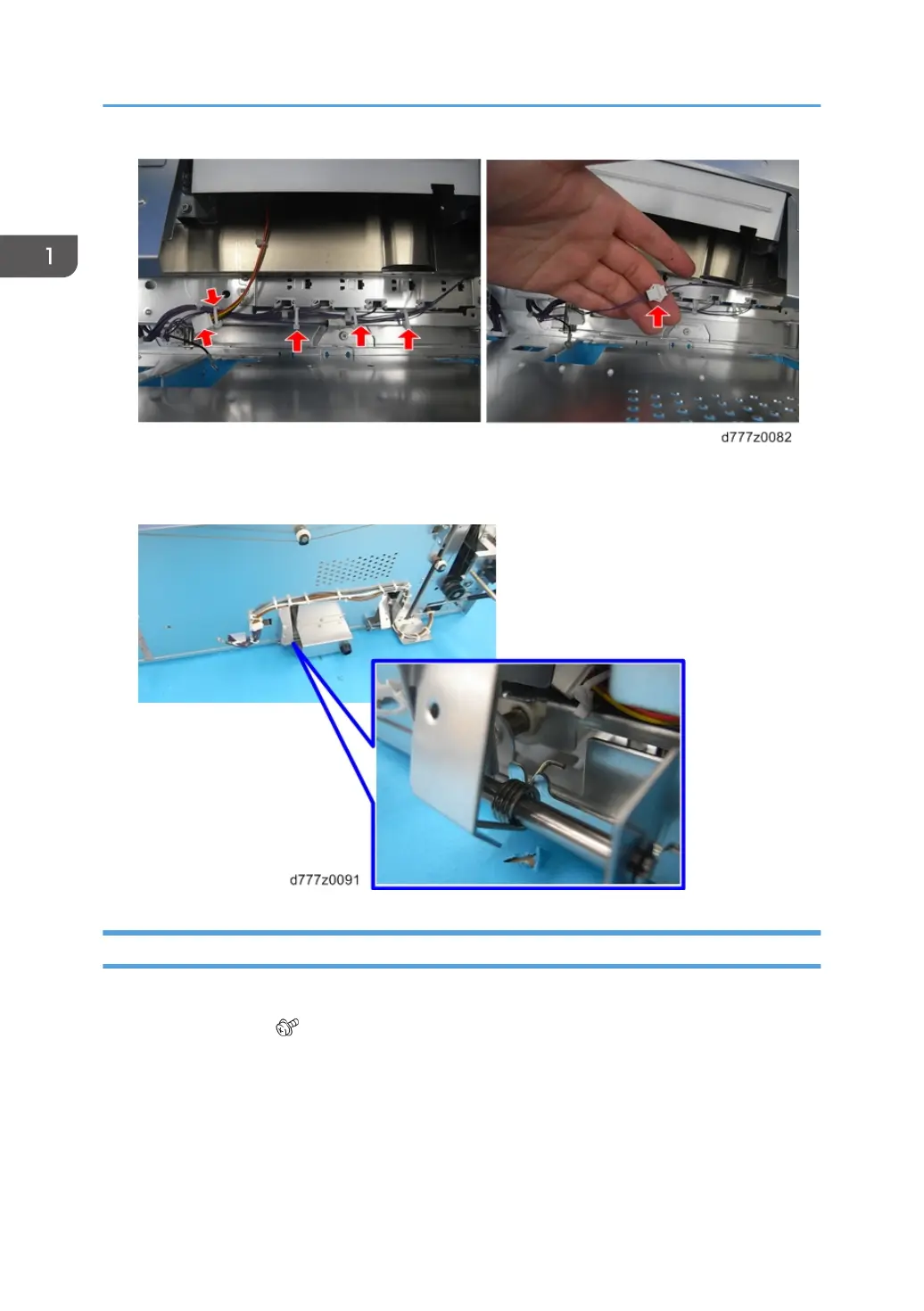

9. Lift the side fence (rear) and remove it.

10. Install the spring on the end face shaft as shown in the photo.

Paper Size Sensors

1. Side fence (rear) (page 35 "Side Fences (Front, Rear)")

2. Sensor bracket [A] ( x2)

1. Replacement and Adjustment
