Ricoh LCIT RT5100 - Main Paper Remaining Sensor

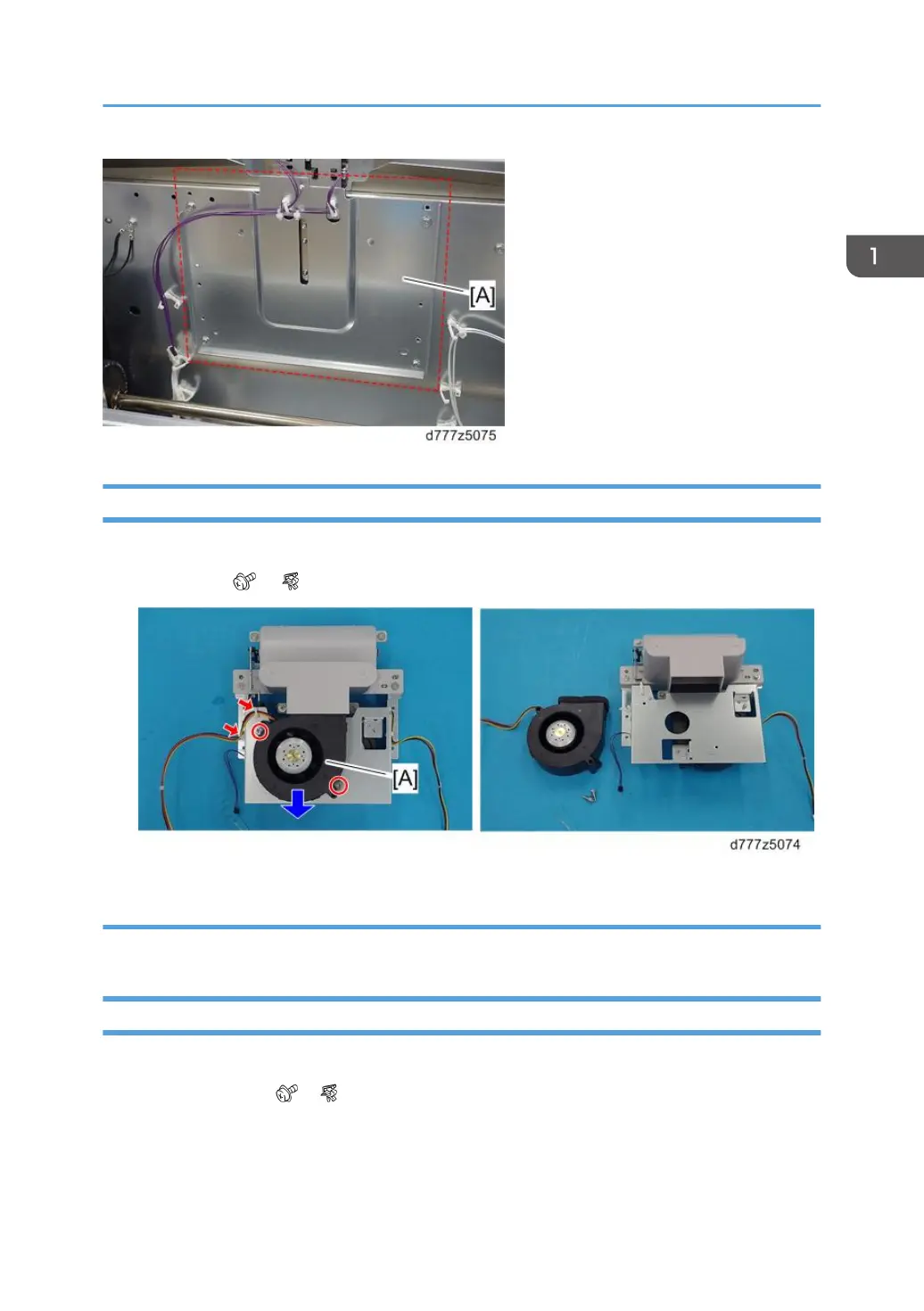

Float Fan
1. Float/separation fan duct (page 26 "Float/Separation Fan Duct")
2. Float fan [A] ( x2, x2)
Re-installation
Install the float fan so that its label faces to the right.
Separation Fan
1. Float/separation fan duct (page 26 "Float/Separation Fan Duct")
2. Separation fan [A] ( x2, x2)
Paper Feed Unit (Trays 1, 2)
27
