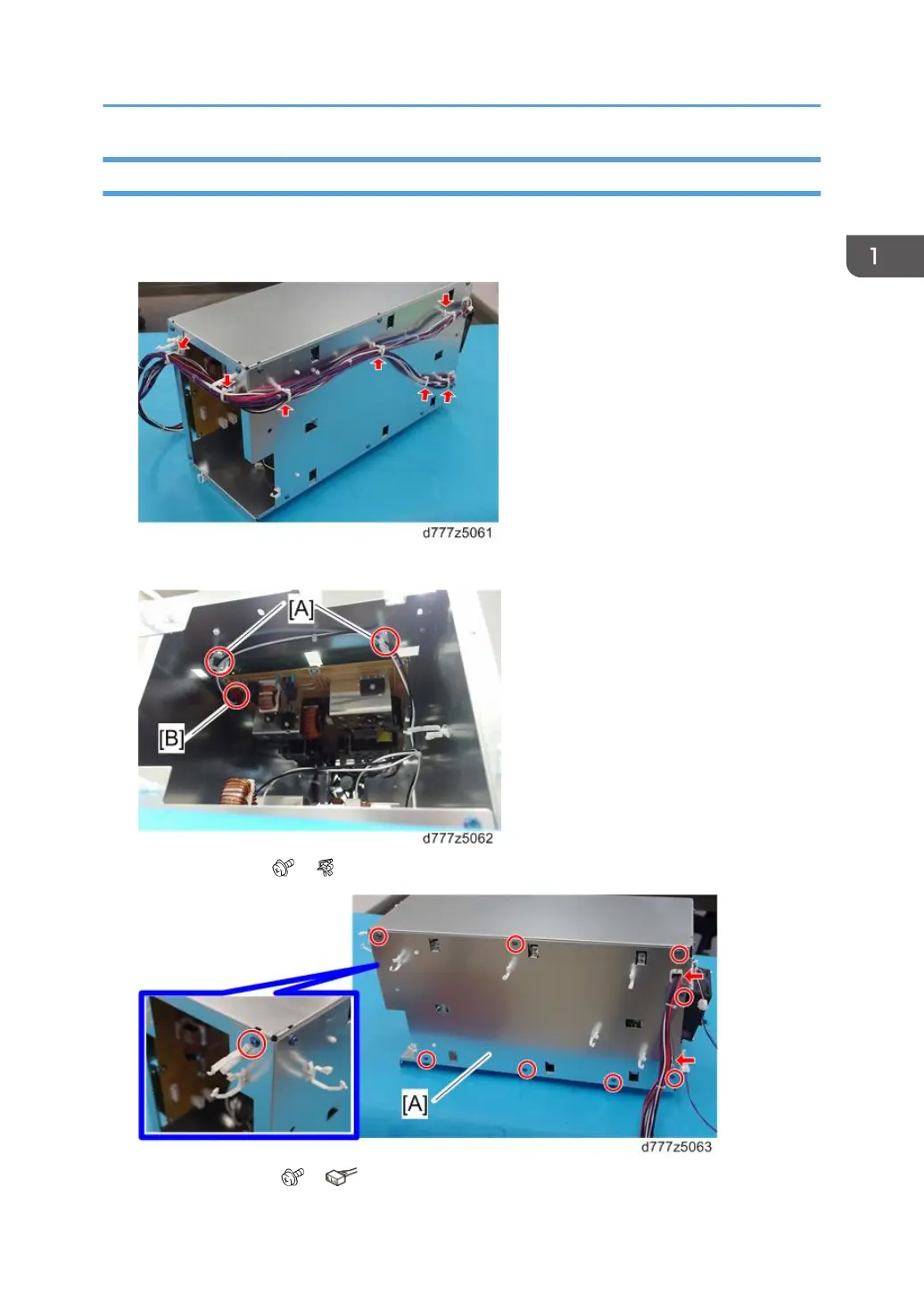

AC Drive Board

1. PSU box (page 81 "PSU box")

2. Open the six clamps.

3. Open the two clamps [A] in the PSU box and disconnect the connector [B].

4. Left PSU cover [A] ( x9, x2)

5. AC drive board [A] ( x6, x2)

PSU Box
