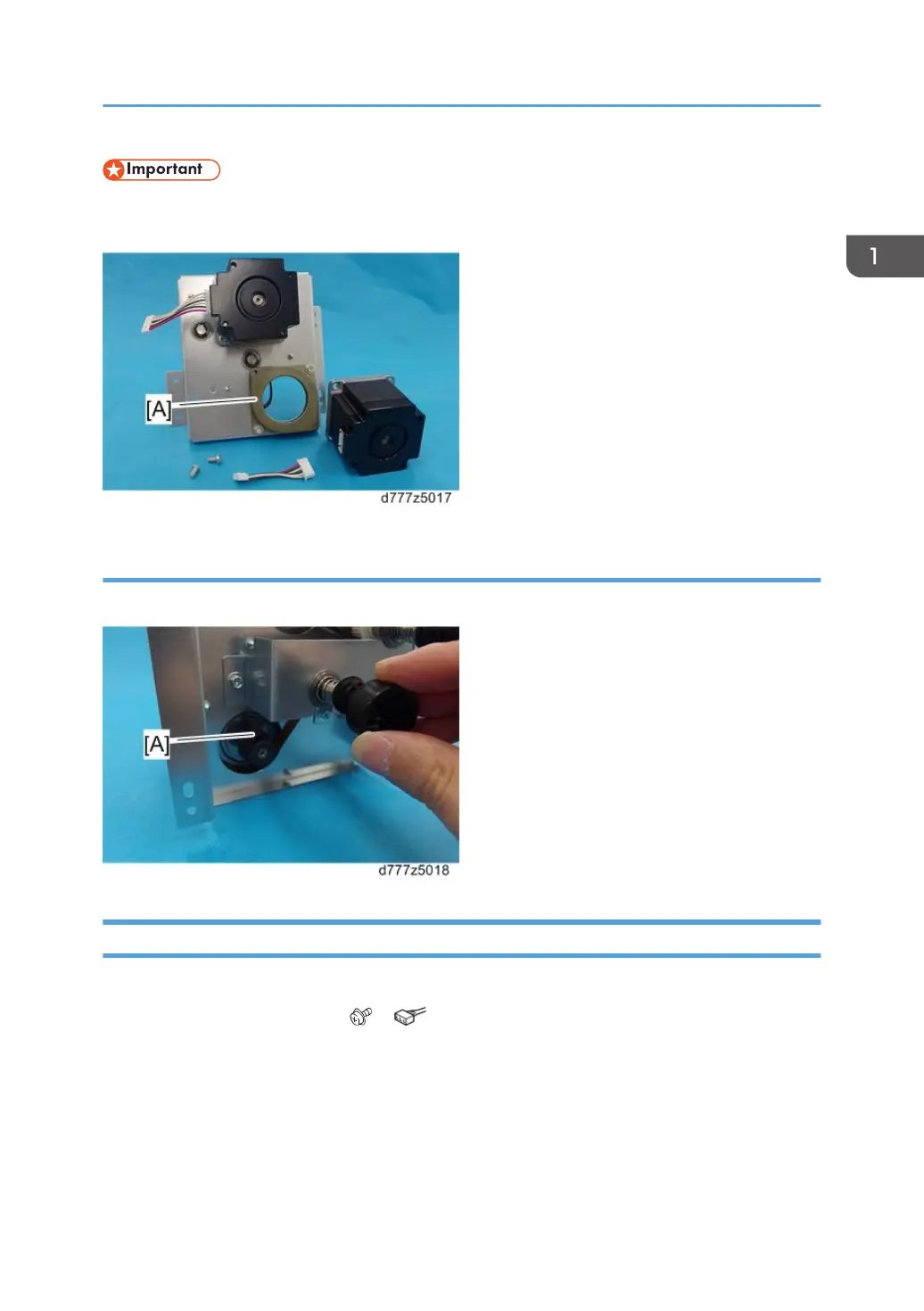

• Do not remove the damper [A] between the motor and the bracket. This damper is factory installed
and cannot be adjusted outside the factory.
Re-installation
When installing the grip motor, make sure that the motor is correctly placed on the timing belt [A].
Tray 2 Pickup Belt Motor
1. Remove the rear right and left covers (page 8 "Rear Right Cover", page 8 "Rear Left Cover").
2. Tray 2 grip motor bracket [A] ( x4, x2)
Rear Side
51
