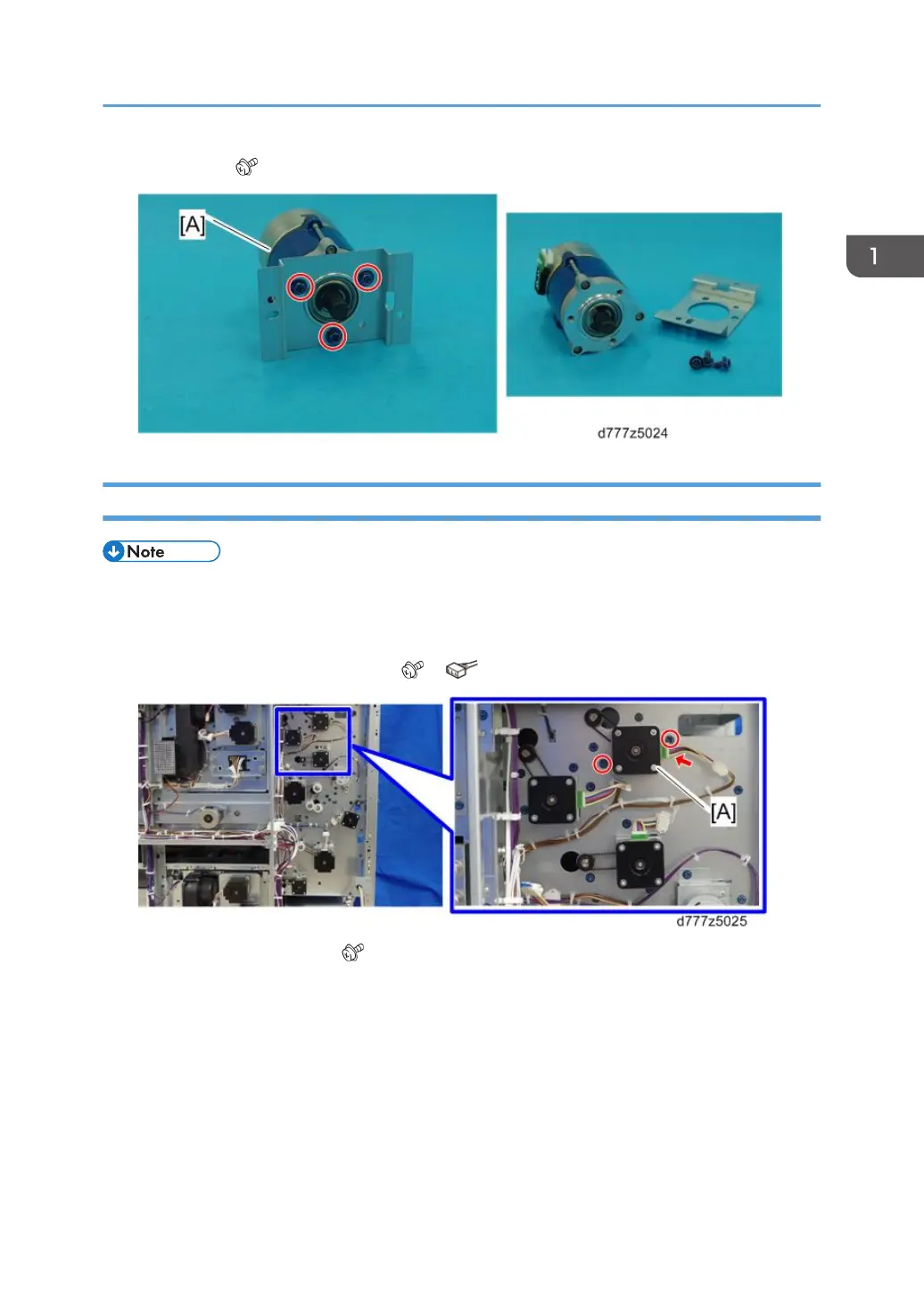

3. Lift motor [A] ( x3)
Bypass Transport Motor 2
• The bypass transport motor 1 is located on the side of the optional bypass unit. When an optional
bypass unit is not installed in the main unit, this motor is not used.
1. Remove the rear right and left covers (page 8 "Rear Right Cover", page 8 "Rear Left Cover").
2. Bypass transport motor 2 bracket [A] ( x2, x1)
3. Bypass transport motor 2[A] ( x2)
Rear Side
55
