Re-installation

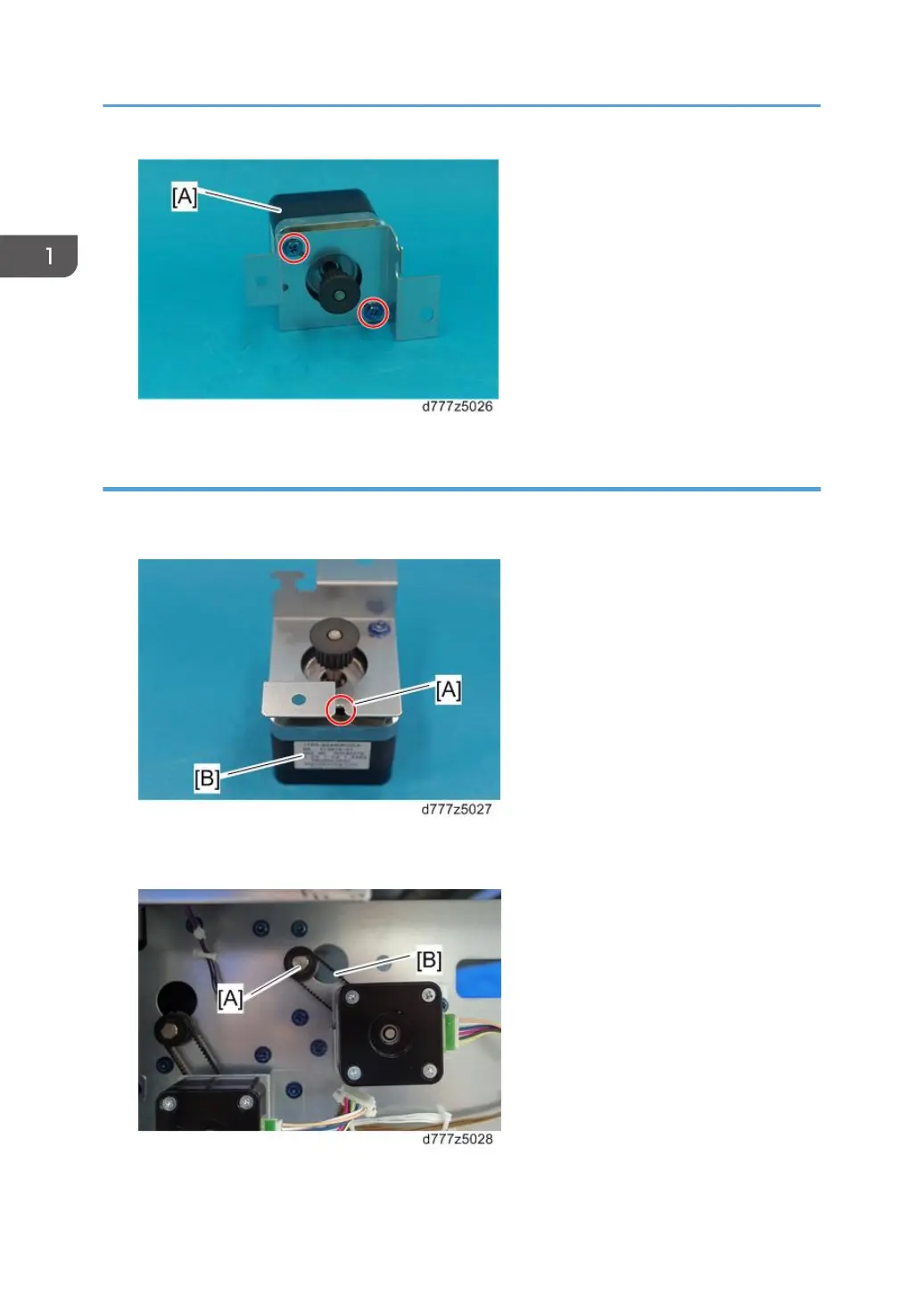

1. When attaching the bracket to the motor, position the bracket so that the opening in the bracket [A]
faces the label [B].
2. When attaching the motor bracket, turn the roller [A] to make sure that the timing belt [B] is
correctly installed.
