Ricoh LCIT RT5100 User Manual

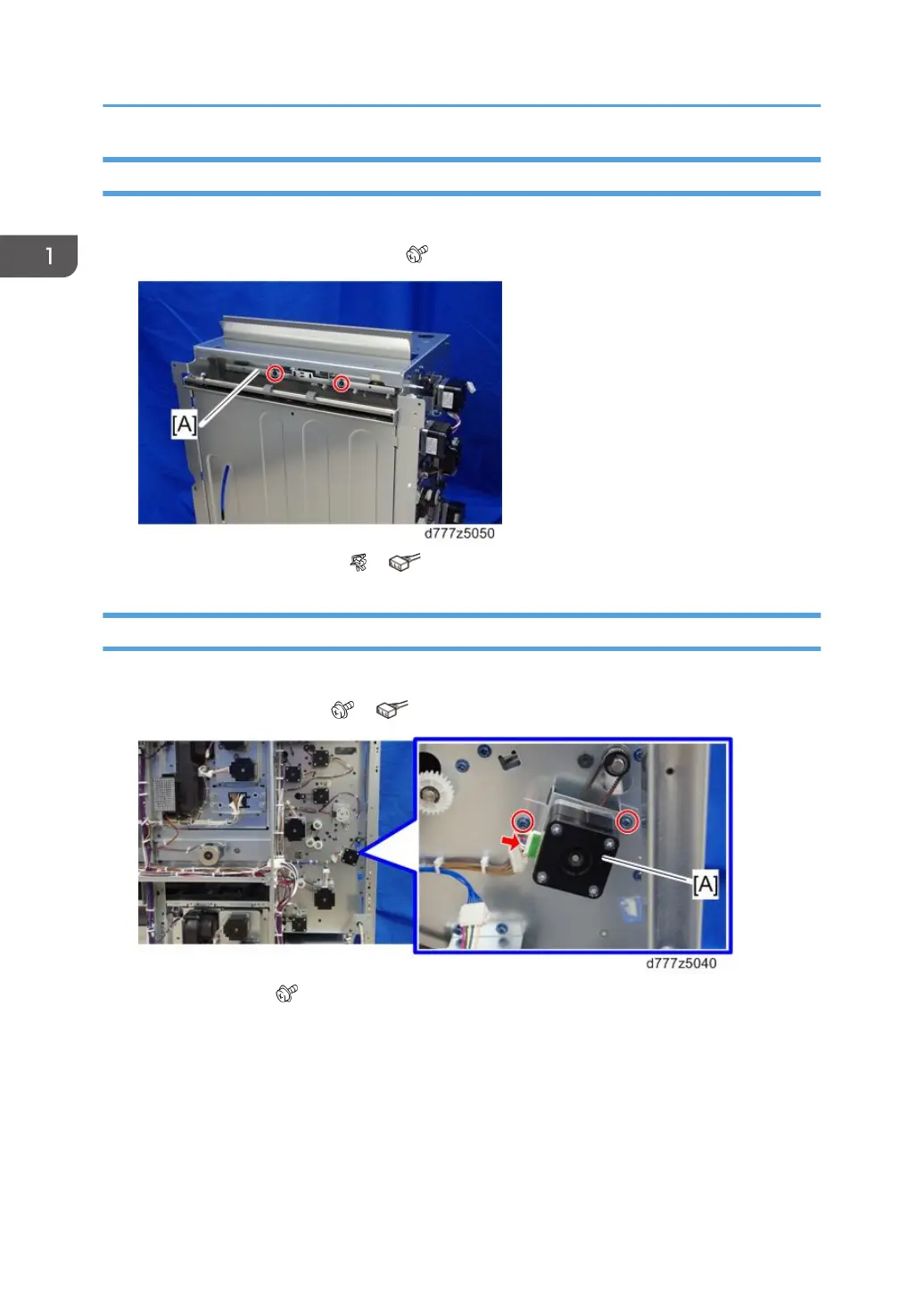

Bypass Transport Sensor 2
1. Vertical feed unit (page 59 "Vertical Feed Unit")
2. Bypass transport sensor 2 bracket [A] ( x2)
3. Bypass transport sensor 2 [A] ( x1, x1)
LCIT Exit Motor
1. Remove the rear right and left covers (page 8 "Rear Right Cover", page 8 "Rear Left Cover").
2. LCIT exit motor bracket [A] ( x2, x1)
3. LCIT exit motor [A] ( x2)
1. Replacement and Adjustment
74
