Tray 1 Vertical Transport Sensor

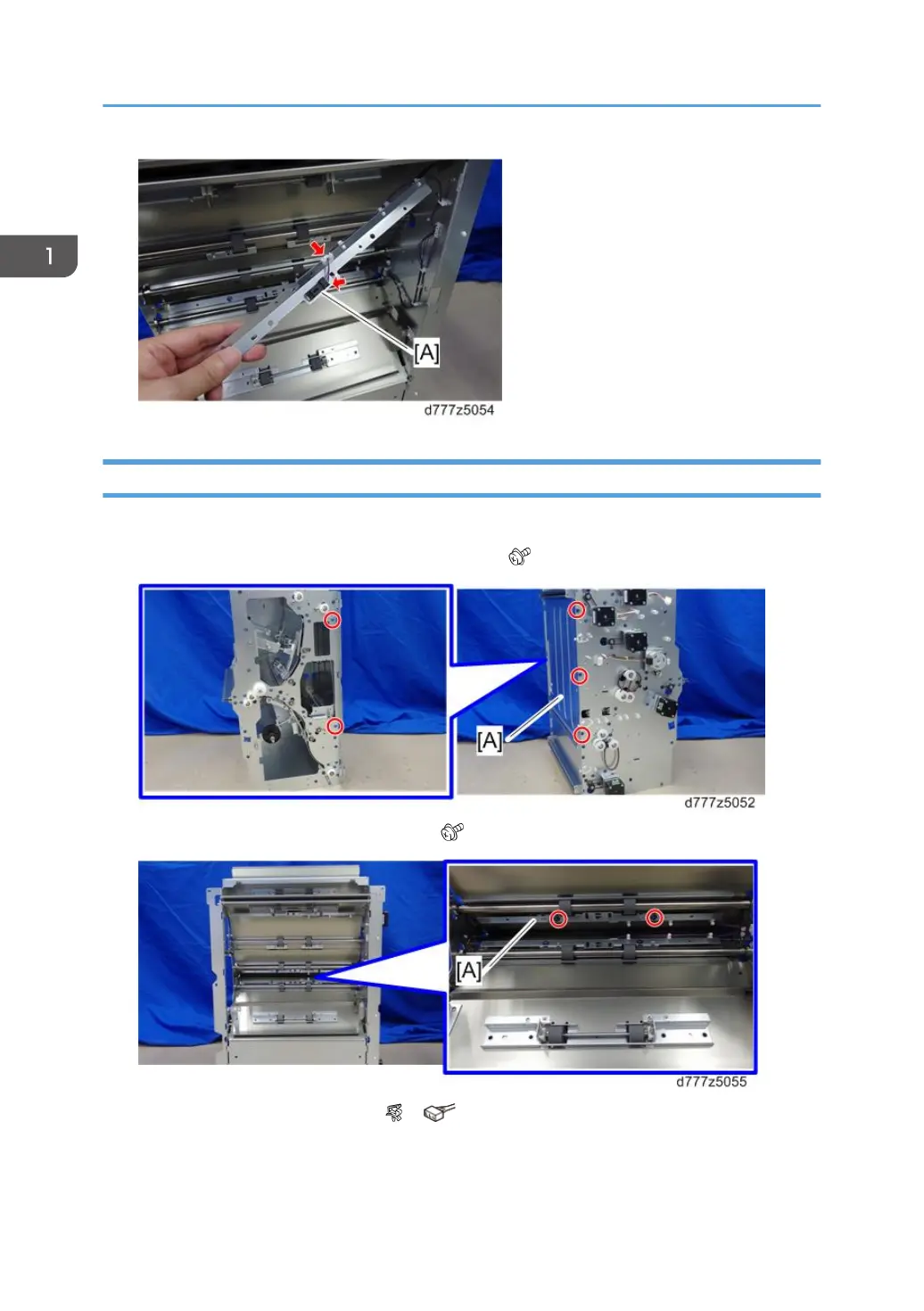

1. Vertical feed unit (page 59 "Vertical Feed Unit")
2. Remove the right cover [A] from the vertical feed unit ( x5).
3. Tray 1 vertical transport sensor bracket [A] ( x2)
4. Tray 1 vertical transport sensor [A] ( x1, x1)
1. Replacement and Adjustment
66
To Next Page
