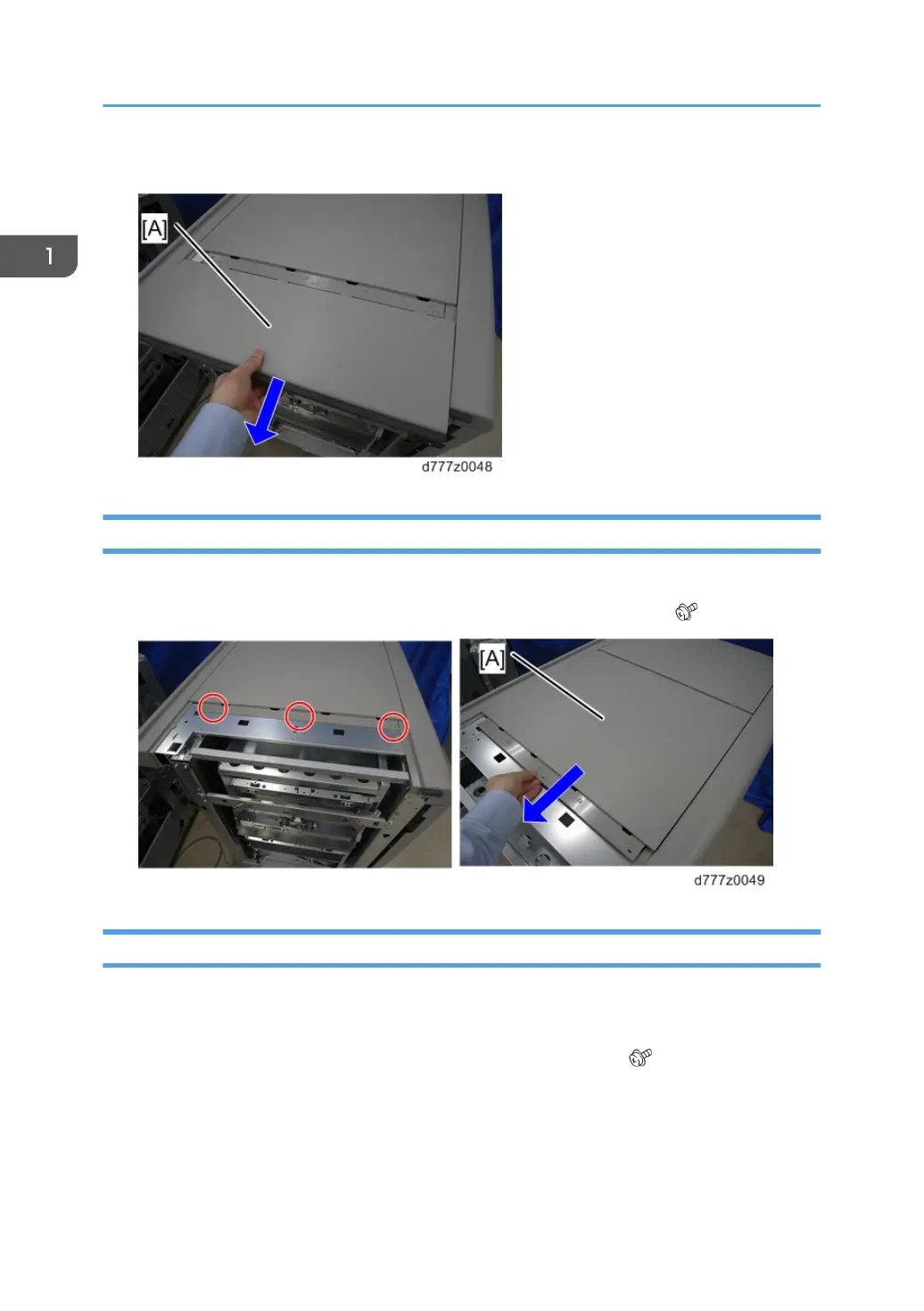

3. Slide the left top cover [A] in the direction of the blue arrow and remove it.
Center Top Cover
1. Left top cover (page 9 "Left Top Cover")
2. Slide the center top cover [A] in the direction of the blue arrow and remove it ( x3).
Right Top Cover
1. Left top cover (page 9 "Left Top Cover")
2. Center top cover (page 10 "Center Top Cover")
3. Slide the right top cover [A] in the direction of the arrow and remove it ( x3).
1. Replacement and Adjustment
10
