9. Troubleshooting Guide RICOH Ri 2000 User Manual
228

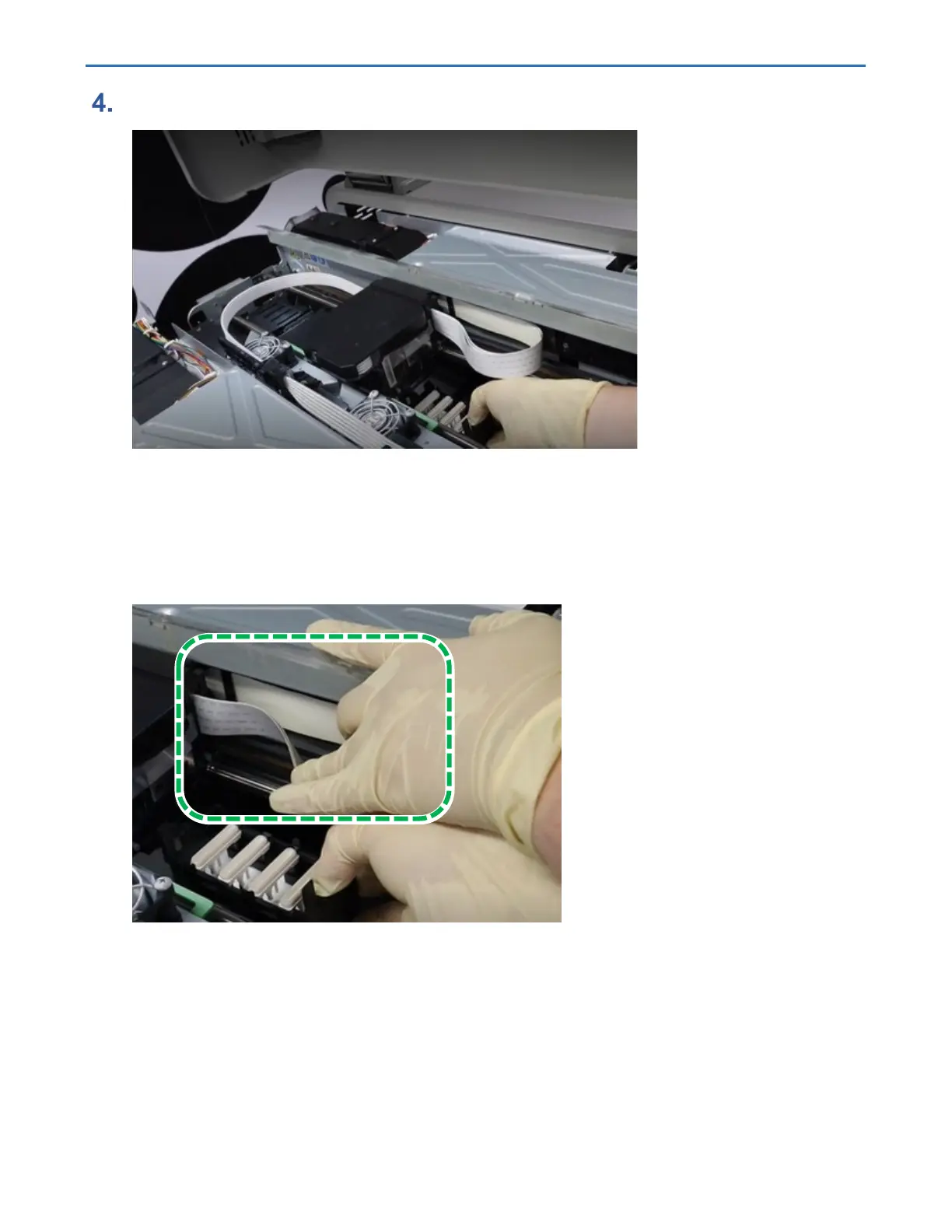

Remove the head protection cover from between the guide rods.
When removing the head protection cover from between the guide rods, it is recommended to
hold the flat cable with the hand opposite to the hand holding the head protection cover while
removing the head protection cover, since the head protection cover tends to get caught on the
flat cable.
If it is difficult to check the position of the head, use a mirror to check the position
To Next Page
