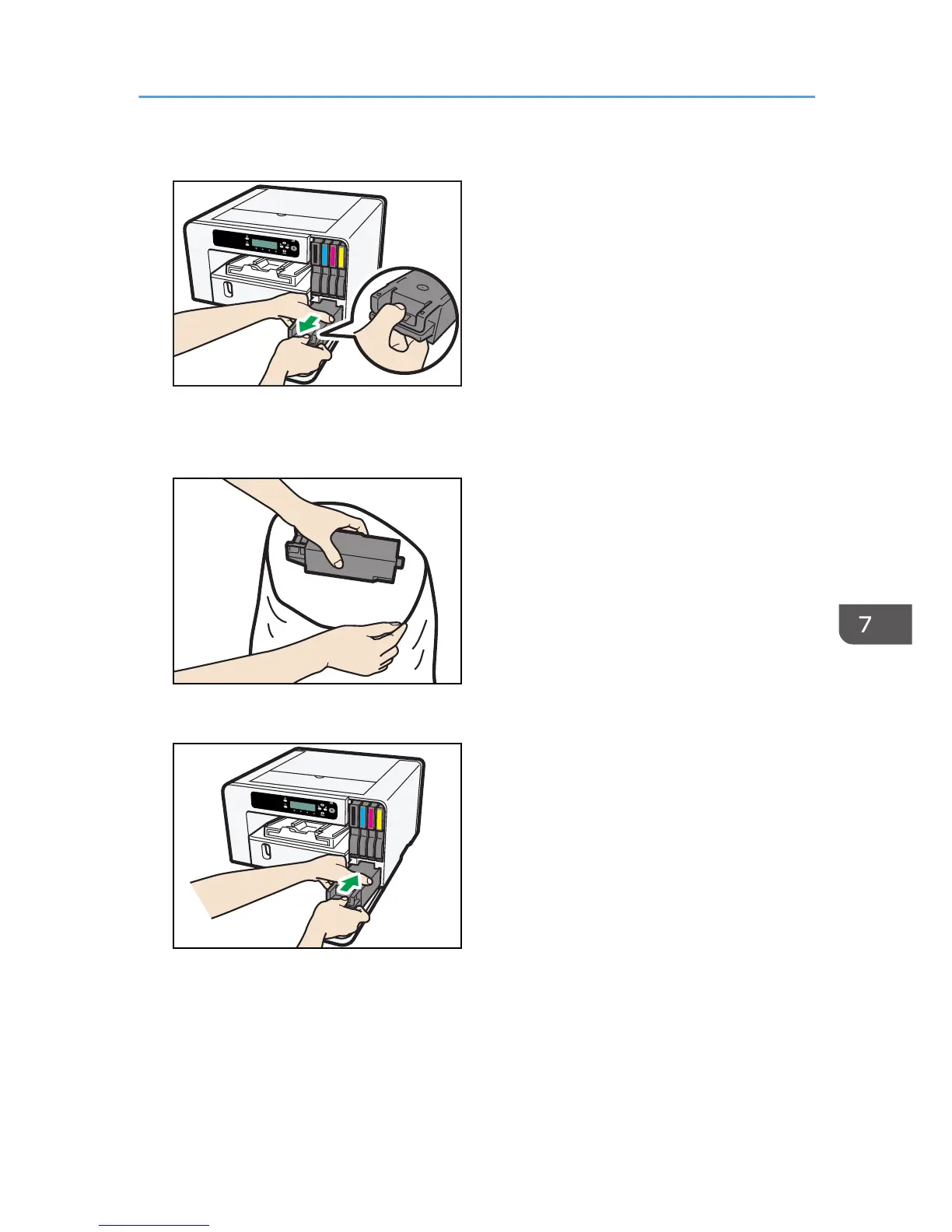

3. Wait at least five seconds, and then remove the full ink collector unit from the machine.
CHU039
While pulling the unit out, keep the unit level and press on the area marked "PUSH".
4. Put the Ink collector unit in the supplied plastic bag.
CHU047
5. Insert the new ink collector unit.
CHU040
Replacing an Ink Collector Unit
203
