Mechanism Details
Inverter

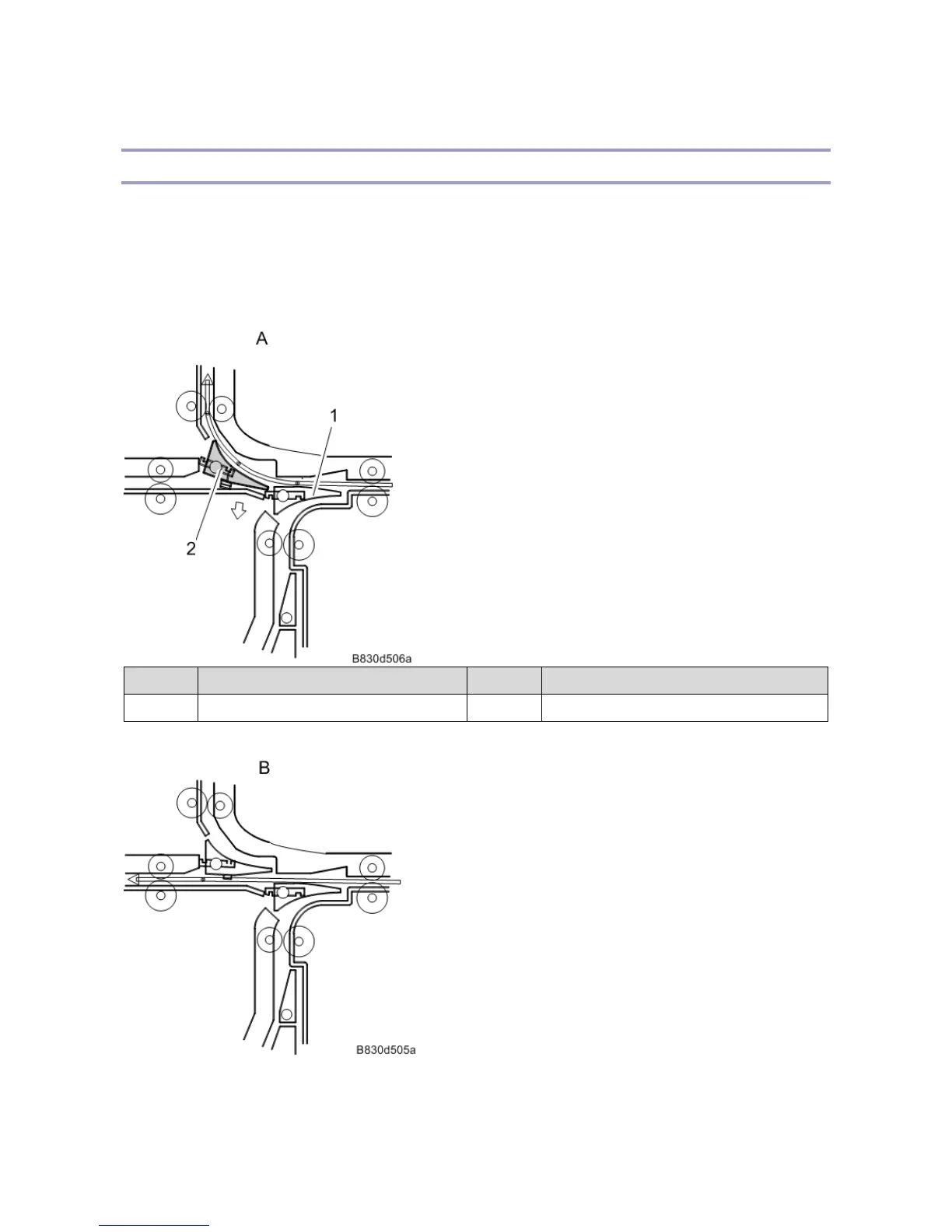

The inverter mechanism has two junction gates that can send paper in one of three ways. For proof tray output, a
motor moves the proof junction gate into position to send paper to the proof tray. In staple mode, another motor
moves the stapler junction gate into position to send paper to the stapler. In shift mode, paper is sent to the shift
tray, and neither junction gate changes over.
Proof Mode
No. Description No. Description
1 Proof Junction Gate 2 Stapler Junction Gate
Shift Mode
Staple Mode
