Ricoh SR4110 - Staple Motors Replacements

2.Replacement and Adjustment
53

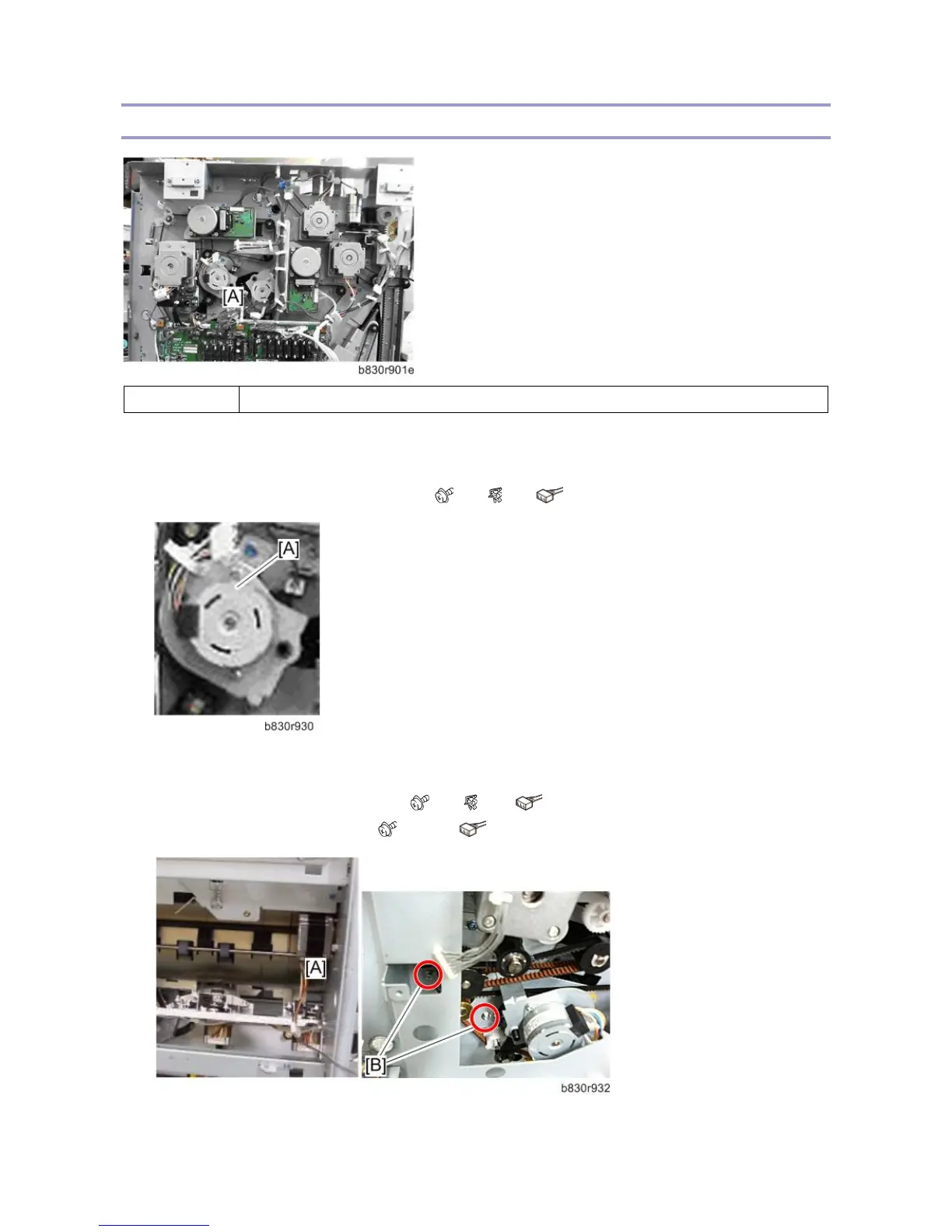

Staple Motors
[A] Stapler Junction Gate Motor
Stapler Junction Gate Motor
1. Remove the rear cover. (Left Covers, Rear Cover, Top Cover, Shift Cover)
2. Remove the stapler junction gate motor [A]. ( x2, x1, x1)
Stapler Exit Motor
1. Remove the main control board bracket. ( x4, x 8, x All)
2. Remove the stapler exit motor [A]. ( x2 [B] , x2, Timing belt x1)
