Ricoh SR4110 - Jogger Bottom Fence Motor Replacement

2.Replacement and Adjustment
46

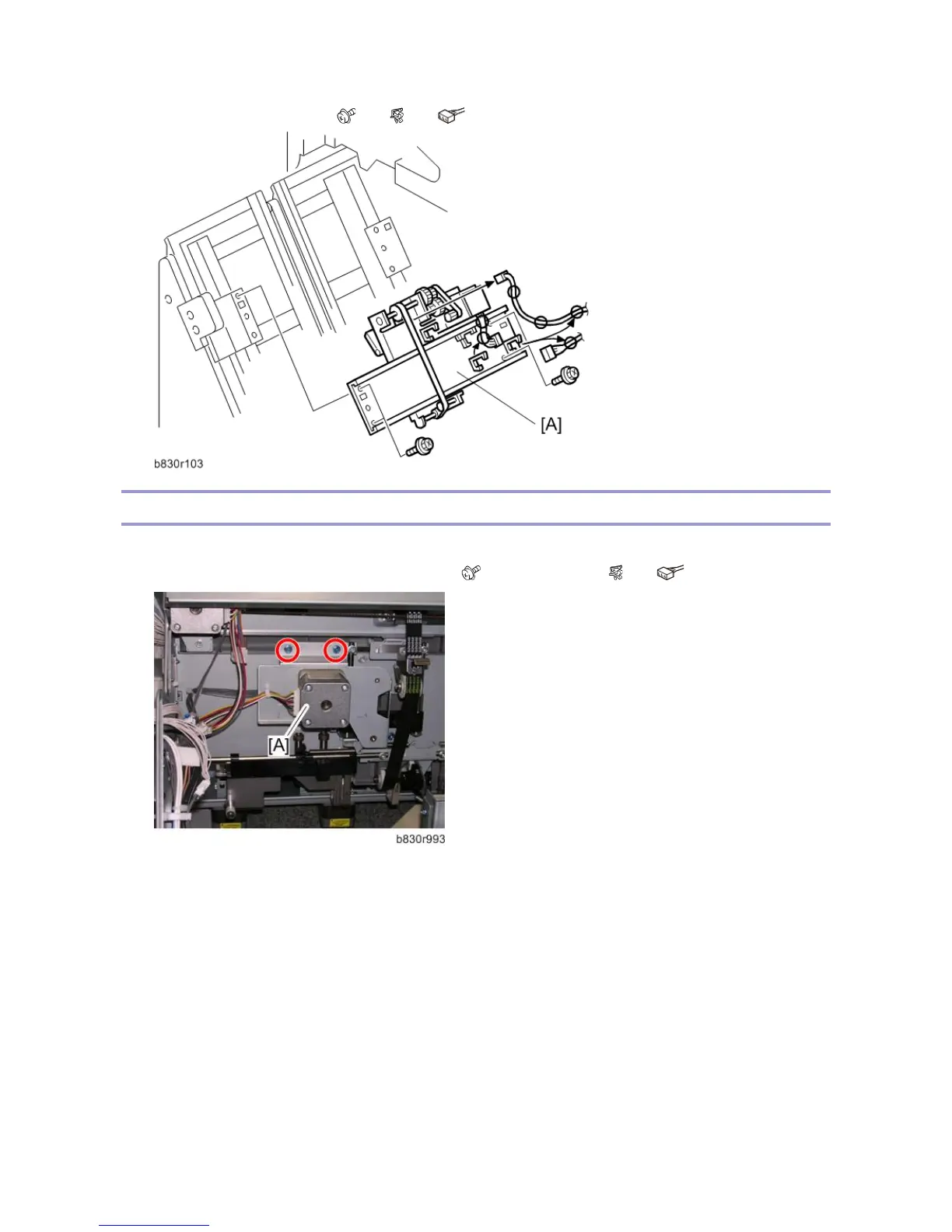

3. Remove the jogger unit [A]. ( x4, x5, x5)
Jogger Bottom Fence Motor
1. Open the front door and pull out the stapler tray unit. (Jogger Unit Cover)
2. Remove the jogger bottom fence motor unit [A]. ( x3, timing belt x1, x1, x1)
