2.Replacement and Adjustment
33
Sensors
Paper Height Sensors
1. Remove the following.
• Top cover (Left Covers, Rear Cover, Top Cover, Shift Cover)
• Left upper panel and left upper cover ( x 2, x 2) (Left Covers, Rear Cover, Top Cover, Shift
Cover)

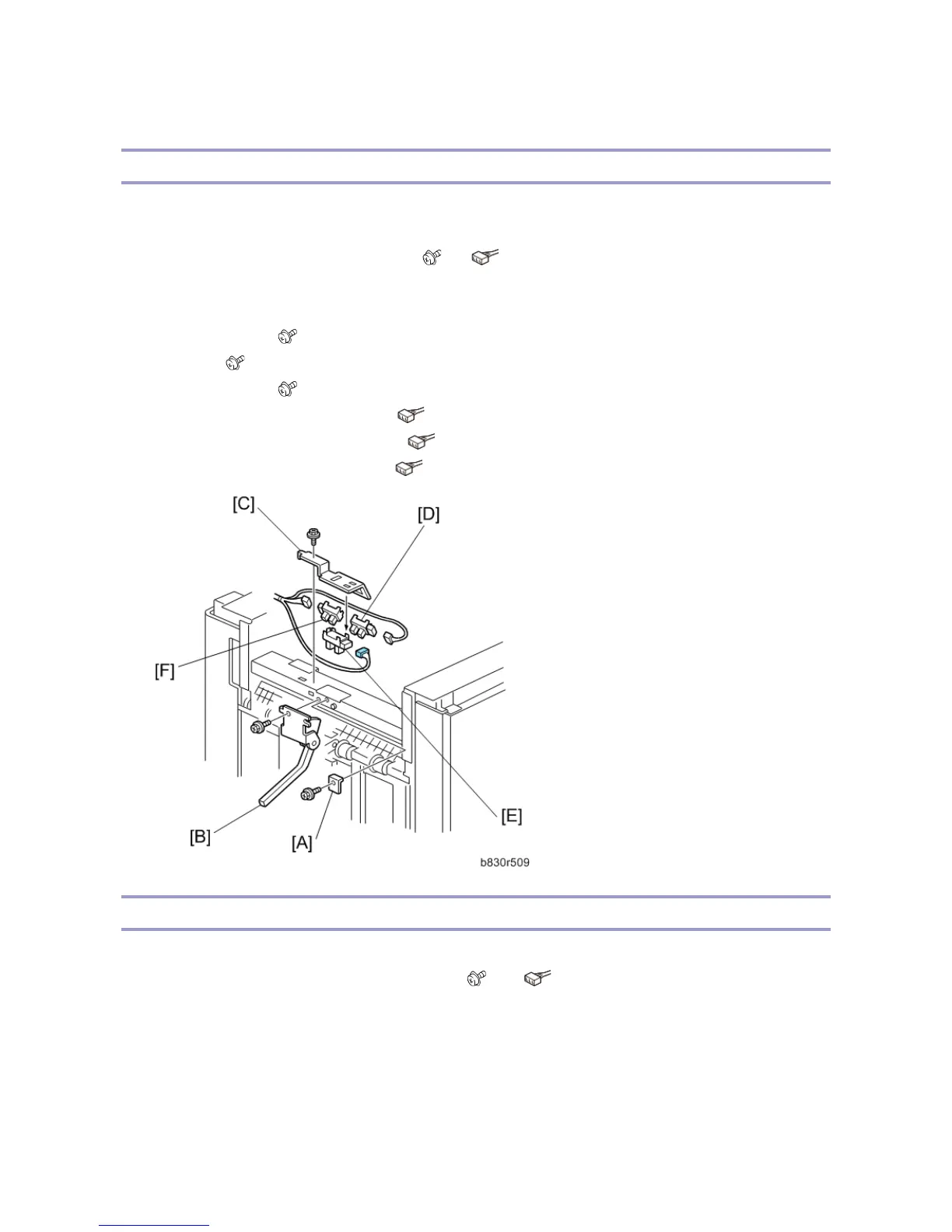

2. Remove the following parts:
Protector plate [A] ( x 1)
Feeler [B] ( x 1)
Sensor bracket [C] ( x 1)
Paper height sensor – staple mode [D] ( x 1, Pawls x4)
Paper height sensor – standby mode [E] ( x 1, Pawls x4)
Paper height sensor – shift/Z-Fold [F] ( x 1, Pawls x4)
Exit Guide HP Sensor
1. Remove the top cover (Left Covers, Rear Cover, Top Cover, Shift Cover)
2. Remove the left upper panel and left upper cover. ( x 2, x 2)
To Next Page
