Ricoh SR4110 - Roller Replacement

2.Replacement and Adjustment
29
Rollers
Drag Roller

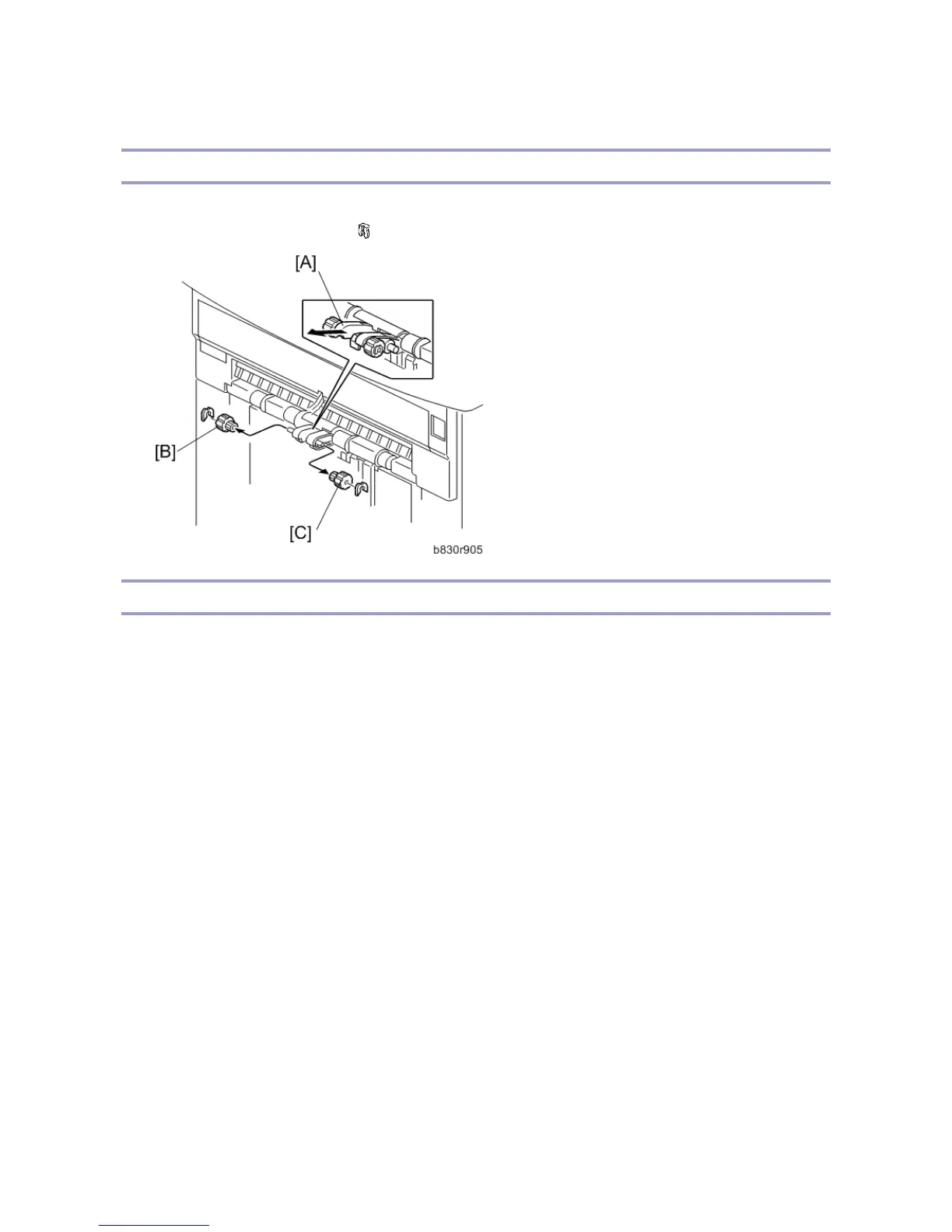

1. Above the shift tray, pull the roller mount [A] out.
2. Remove the rollers [B] and [C]. ( x 1 each)
Positioning Roller
1. Jogger unit cover (Jogger Unit Cover)
2. Rermove the following parts:
Snap ring [A]
Rubber belt [B]
Positioning roller [C]
