Ricoh SR4110 - Jogger Top Fence Motor Replacement; Jogger Unit Replacement

2.Replacement and Adjustment
45
Jogger Top Fence Motor
1. Open the front door and pull out the stapler tray unit. (Jogger Unit Cover)
2. Remove the jogger unit cover. ( x2)

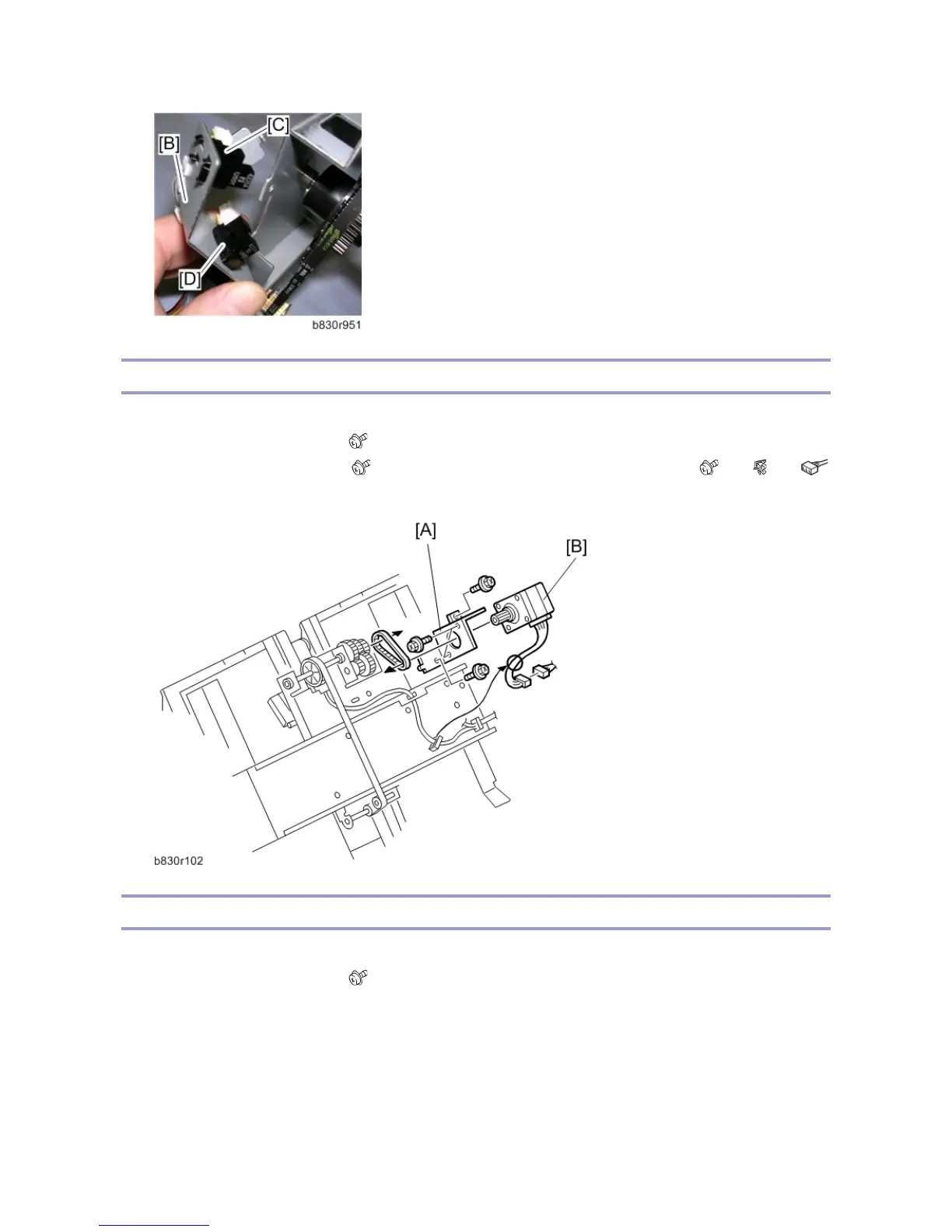

3. Remove the motor bracket [A] ( x2, timing belt x1) and jogger top fence motor [B]. ( x2, x1,
x1)
Jogger Unit
1. Open the front door and pull out the stapler tray unit. (Jogger Unit Cover)
2. Remove the jogger unit cover. ( x2)
