1.Detailed Descriptions
12

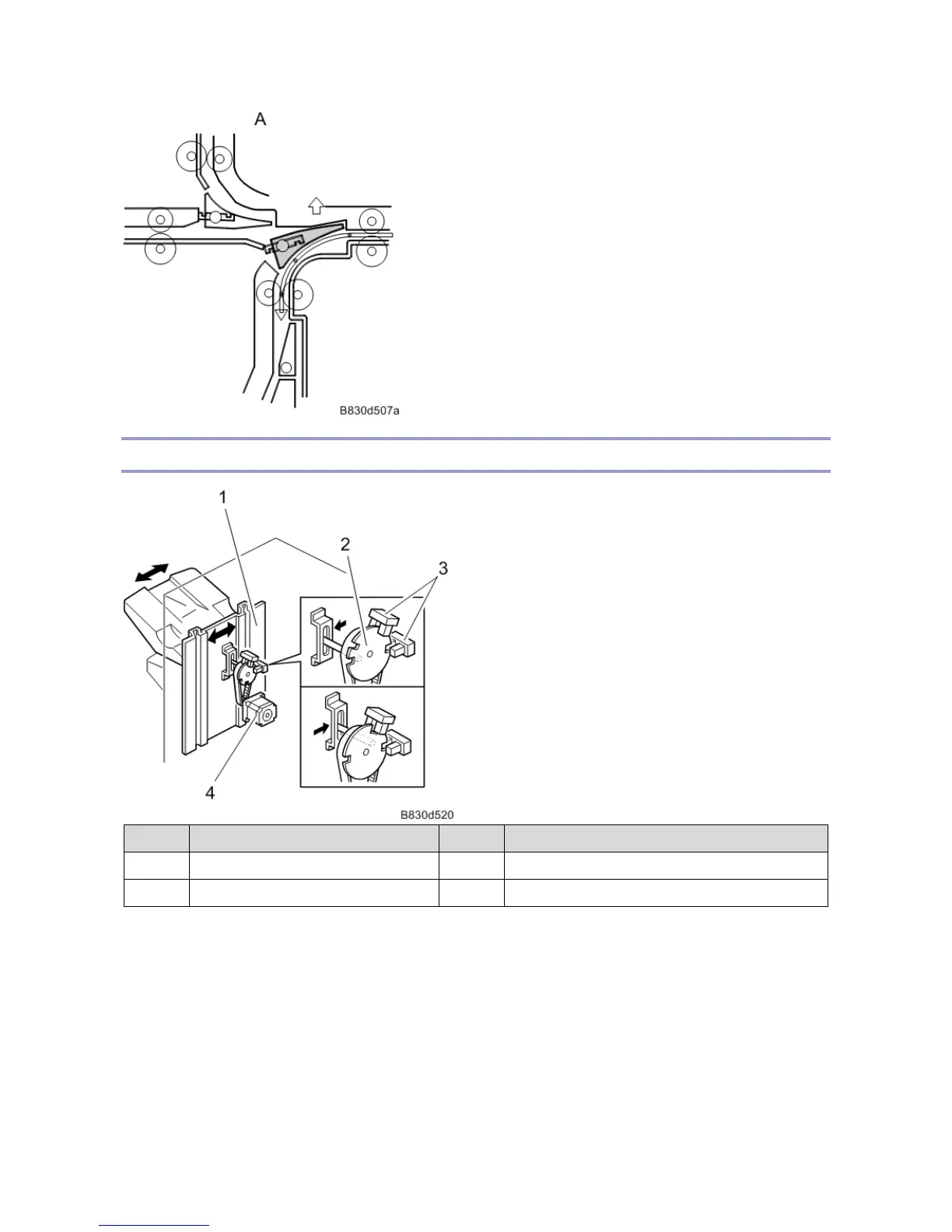

Shift Tray
No. Description No. Description
1 Shift Tray End Fence 3 HP Sensor
2 Shift Gear Disk 4 Shift Tray Half-turn Sensors
• Shift Tray
In shift mode, when the last printed paper has been output, the shift motor moves the shift tray to the left or
the right. When one of the half-turn sensors detects one of the slots in the shift gear disk, the motor stops.
The shift amount is 15mm..
• Up / Down
The shift tray moves up or down depending on the stack height of the output paper. The degree of motion is
adjusted to keep the paper height sensor actuator (3) between the two paper height sensors (1, 2).
