1.Detailed Descriptions
9
No. Description No. Description
1 Jogger HP Sensor 10 Shift Motor
2 PCB 11 Tray Lower Limit Sensor
3 Jogger Motor 12 Tray Near-limit Sensor
4 Shift Paper Sensor 13 Tray Lower Sensor
5 PCB 14 Drag-in Drive Motor
6 Staple Paper Sensor 15 Drag-in Transport Motor
7 Emergency Stop Switch 16 Paper Sensor
8 Drag-in Drive HP Sensor 17 Jogger Motor
9 Shift Tray HP Sensor

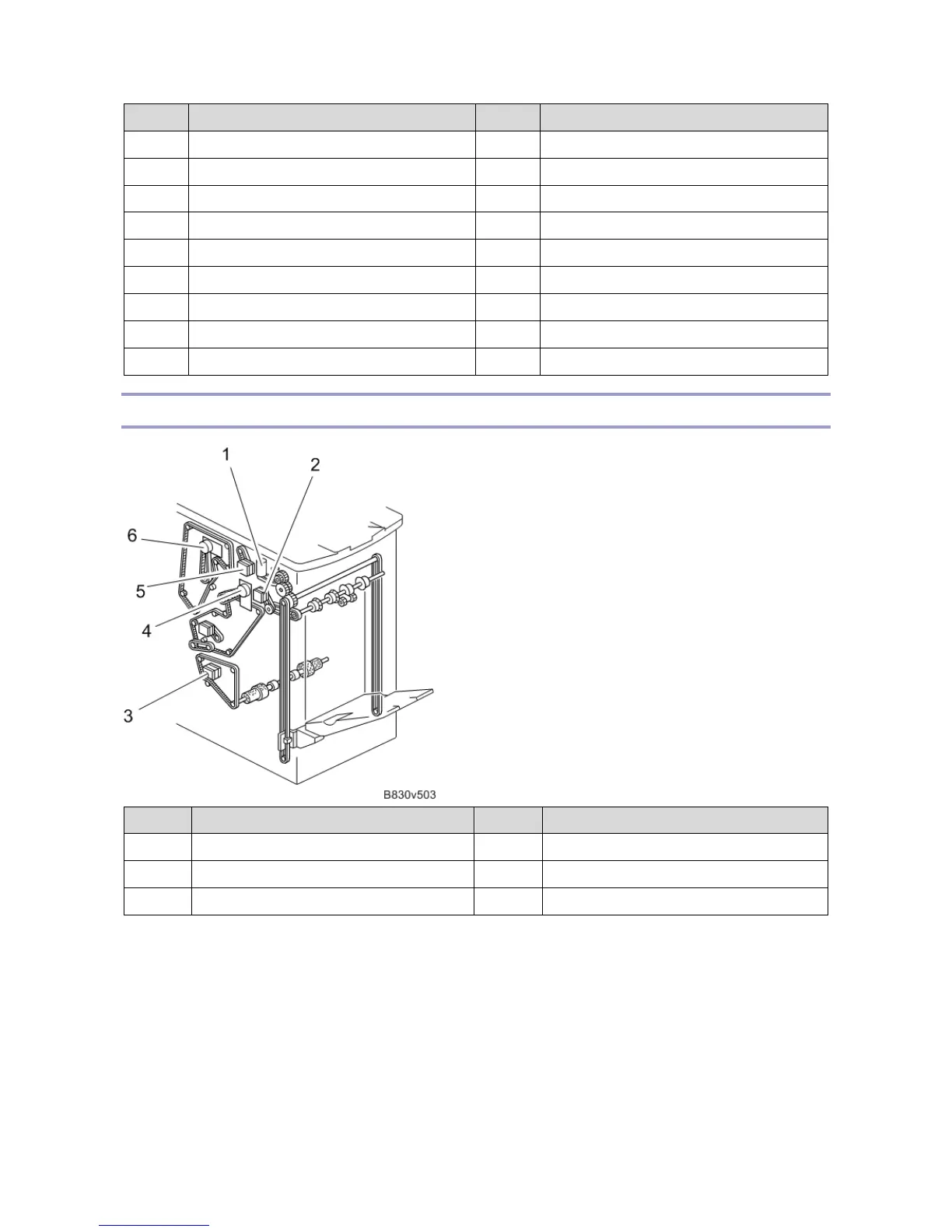

Drive Layout
No. Description No. Description
1 Tray Shift Motor 4 Lower Transport Motor
2 Shift Exit Motor 5 Proof Exit Motor
3 Staple Transport Motor 6 Upper Transport Motor
