Ricoh SR4110 User Manual

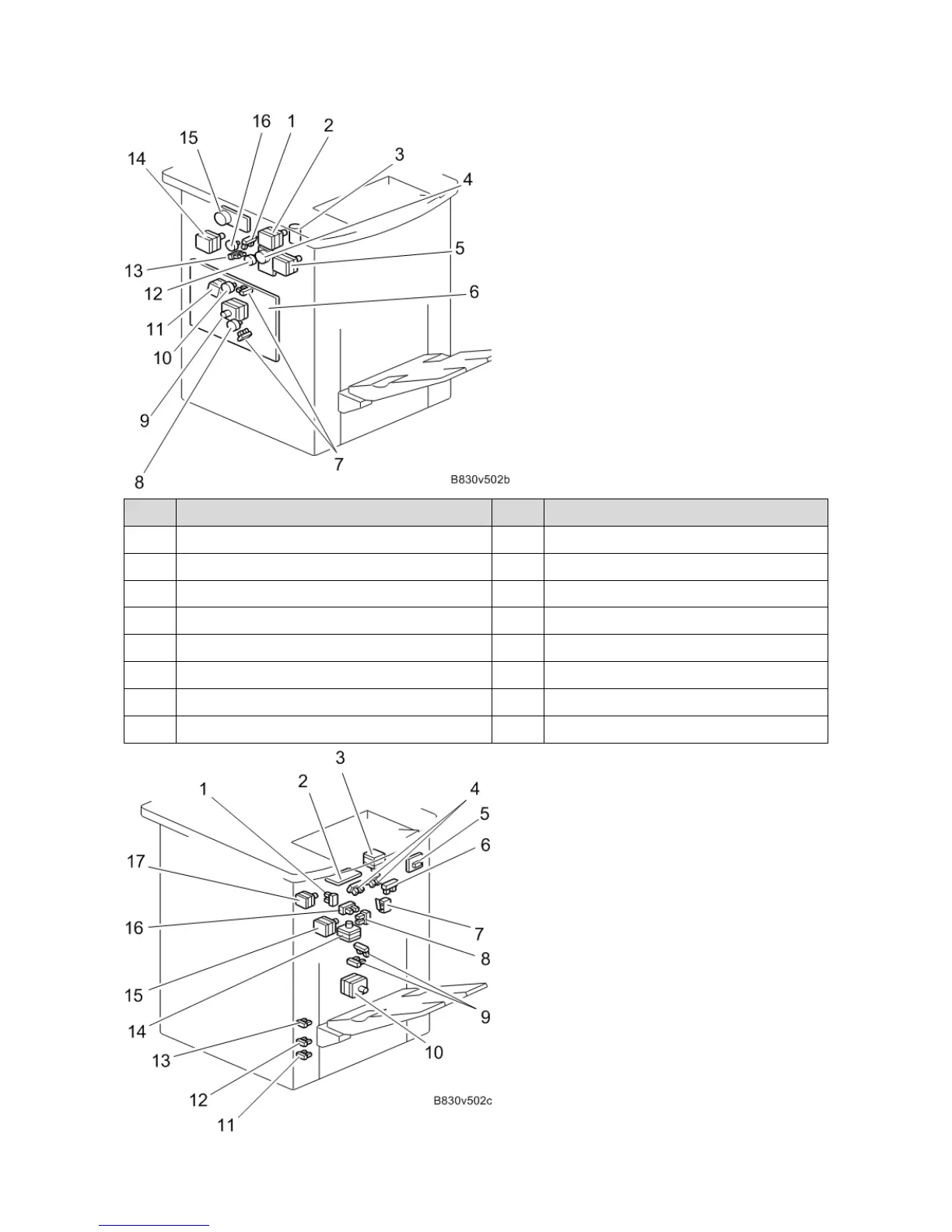

1.Detailed Descriptions
8
No. Description No. Description
1 Stapler Junction Gate HP Sensor 9 Transport Motor
2 Proof Exit Motor 10 Pre-stack Junction Gate
3 Tray Upper/lower Motor 11 Vertical Transport Motor
4 Lower Transport Motor 12 Proof Junction Gate Motor
5 Shift Exit Motor 13 Proof Junction Gate HP Sensor
6 Main Controller Board 14 Punch Unit Motor
7 Pre-stack Junction Gate HP Sensor 15 Upper Transport Motor
8 Pre-stack Junction Gate Motor 16 Stapler Junction Gate Motor
