1.Detailed Descriptions
16
To staple up to 100 sheets of paper, the machine holds paper so that the edge of the stack that will be stapled
is flattened. When the jogger returns to the home position, the stack plate motors operate the stack plates that
hold the paper. When the next following sheet turns the stapler entrance sensor OFF, the stack plate motors
turn ON to return the stack plates back to the home position. The home position is detected with the stack
plate HP sensors. This process is done every sheet, so that the front and rear stack plates hold down the
curled parts at the corners of the stack. The front and the rear stack plates cannot operate if the stapler is
there, so they only operate when the stapler is not there. This is monitored every sheet. The central stack plate
always operates regardless of the location of the stapler.
• Front Corner Stapling: Center + Rear
• Rear Corner Stapling: Front + Center
• 2-position Stapling: Front + Center + Rear

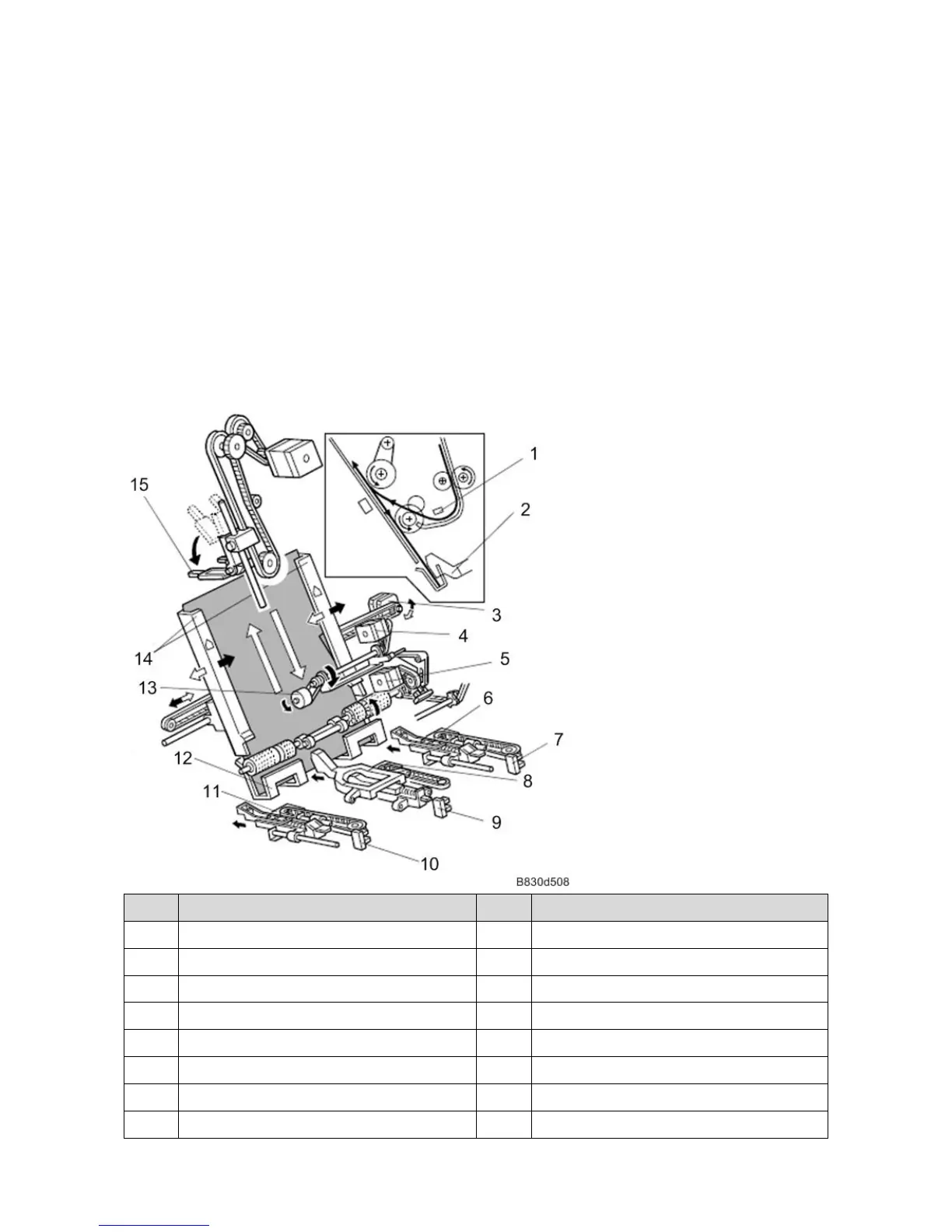

No. Description No. Description
1 Stapler Tray Entrance Sensor 9 Stack Plate HP Sensor (Center)
2 Stack Stopper 10 Stack Plate HP Sensor (Front)
3 Jogger Motor 11 Stack Plate Motor (Front)
4 Positioning Roller Drive Motor 12 Stack Stopper
5 Positioning Roller Motor 13 Positioning Roller
6 Stack Plate Motor (Rear) 14 Jogger Fences
7 Stack Plate HP Sensor (Rear) 15 Top Fence
8 Stack Plate Motor (Center)
