2.Replacement and Adjustment
51

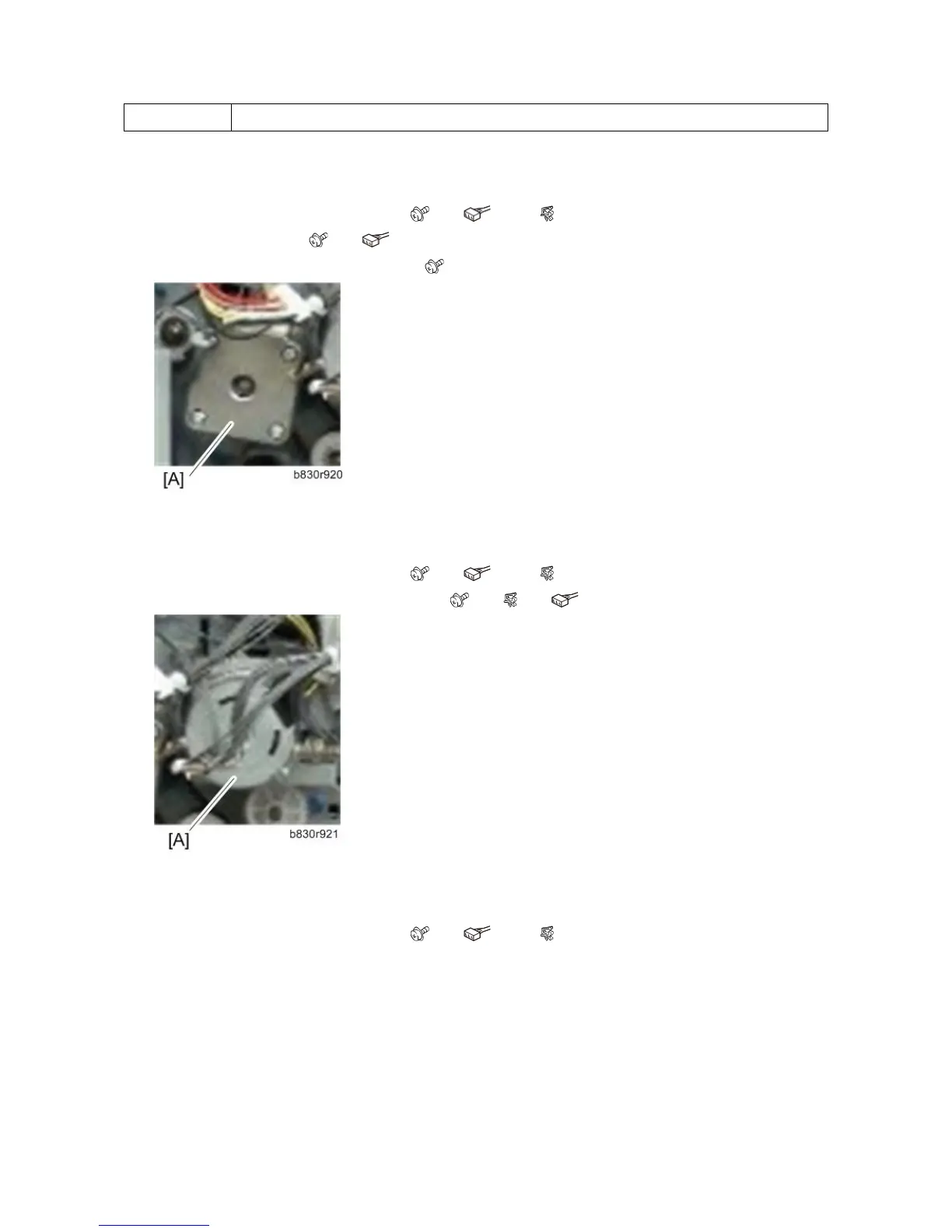

[C] Pre-Stack Stopper Motor
Pre-Stack Transport Motor
1. Remove the rear cover. (Left Covers, Rear Cover, Top Cover, Shift Cover)
2. Remove the main control board bracket. ( x4, x All, x8)
3. Remove the motor unit. ( x2, x1)
4. Remove the pre-stack transport motor [A]. ( x2)
Pre-Stack Junction Gate Motor
1. Remove the rear cover. (Left Covers, Rear Cover, Top Cover, Shift Cover)
2. Remove the main control board bracket. ( x4, x All, x8)
3. Remove the pre-stack junction gate motor [A]. ( x2, x1, x1)
Pre-Stack Stopper Motor
1. Remove the rear cover. (Left Covers, Rear Cover, Top Cover, Shift Cover)
2. Remove the main control board bracket. ( x4, x All, x8)
To Next Page
