Ridder RW800 - Page 20

Oponal mounng plates

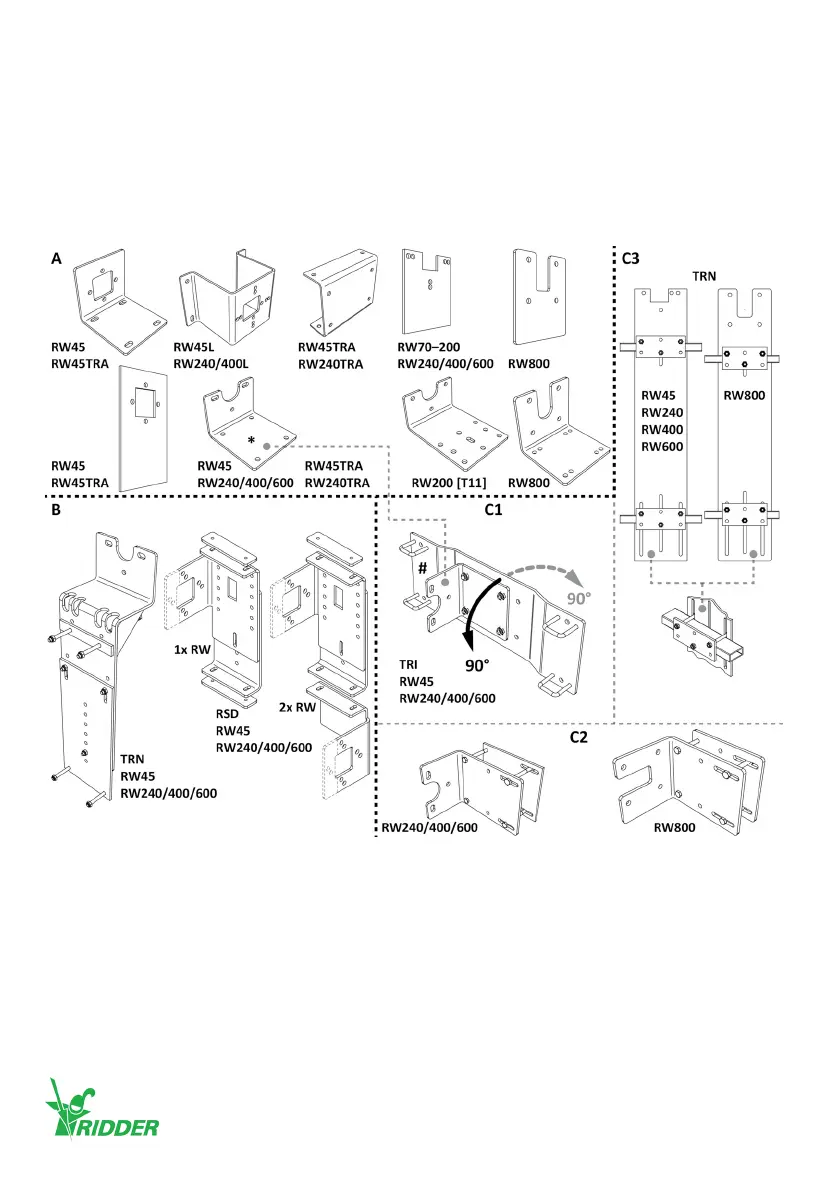

❶ A. Mounting plates: Do bolt aachment or welded aachment to a structure. Use wedge bolts
(or such) for wall mounng.
B. Mounting plates: Do bolt aachment to a structure (dierent lace heights possible).
C. Clamp mounting plates:
C1. Use a base plate (#) and a type A mounng plate (*) on C-proles.
C2. Do clamp mounng on posts.
C3. Do clamp mounng on laces (dierent lace widths and lace heights possible).
In this manual shown illustraons can be dierent than the components and/or systems. For more
informaon on item numbers and models refer to the Ridder catalog or website at ridder.com.
