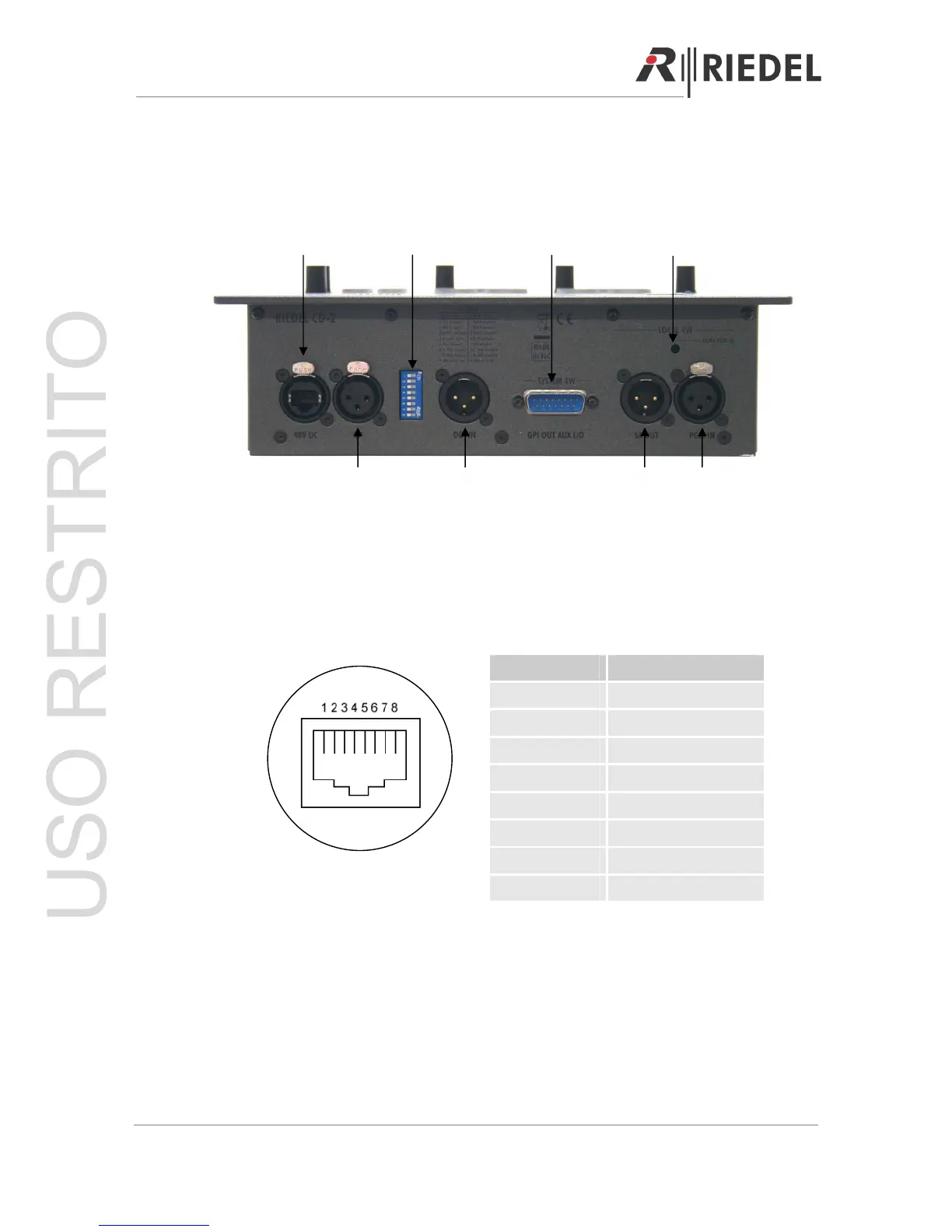

4.3 User Elements Rear
4.3.1 Power Connector
Connect to this connector the optional external power supply (+48V DC) for refreshing the
power of the line or for using the CD-2 as an master station.
Pin Out DC ext. 48V
Pin Signal
1
2
3
4 48V
5 48V
6
7 GND
8 GND
DC in RJ 45
4.3.2 SUB D 15 Connector
The Sub D 15 connector hosts the AUX audio in- and outputs (system 4-wire) as well as all
GPI out contacts.
Power
Connector
+48V
SUB D
Connector
DIP Switch
SA Out
Connector
PGM In
Connector
Upstream
Connector
Downstream
Connector
PGM In
Adjustment
