8.3.5 Artist Digital I/O Ports
Use the Artist Digital I/O ports of the C44 / C44plus to connect the digital partyline to an
Artist or Performer matrix. This enables the user of the matrix to speak directly to the digital
partyline and vise versa in digital audio quality.
Note: If the C44 / C44plus is connected to the matrix in dual channel mode (both CH A and
CH B enabled), please refer to the Director Software manual to see how to configurate the
matrix CAT ports for dual channel mode (second channel of C3 enabled).

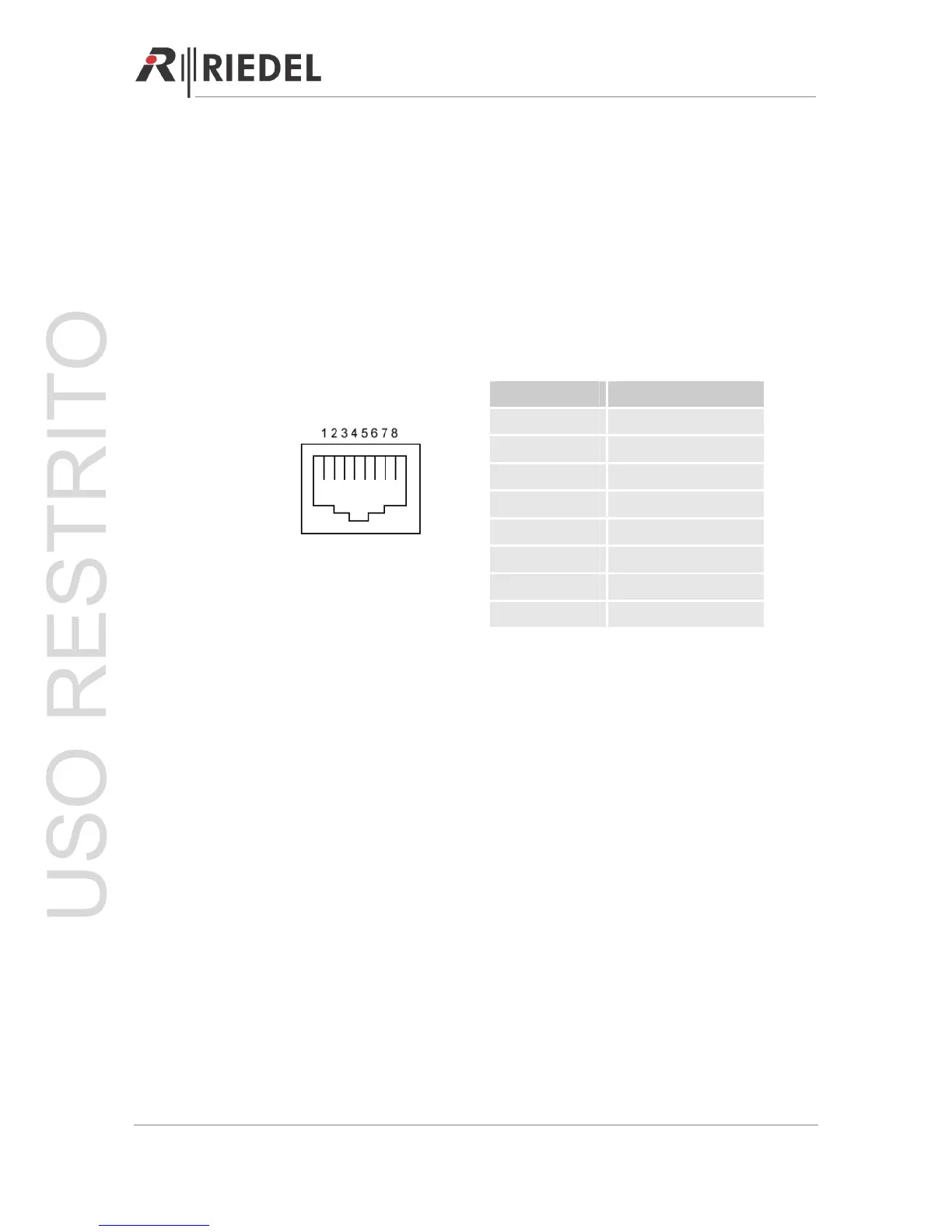

Pin Out Artist I/O
Pin Signal
1 TX +
2 TX -
3 RX +
4
5
6 RX -
7
8
Artist I/O RJ 45
8.4 Program Select via DIP Switch (Front)
The following diagrams show the configuration associated with each DIP switch.
Note: When the C44 / C44plus is used with the audio assignment software (
Æ see audio
assignment manual) the configurations may vary!
The following abbreviations are used:
Artist _a = first channel
Artist _b = second channel
DPL _a = partyline first channel
DPL _b = partyline second channel
AIO 1 = one of the eight audio input/output outputs
