PERFORMER Digital Partyline, User Manual, Version 2.30
9.2 Integration with Artist/Performer Matrix

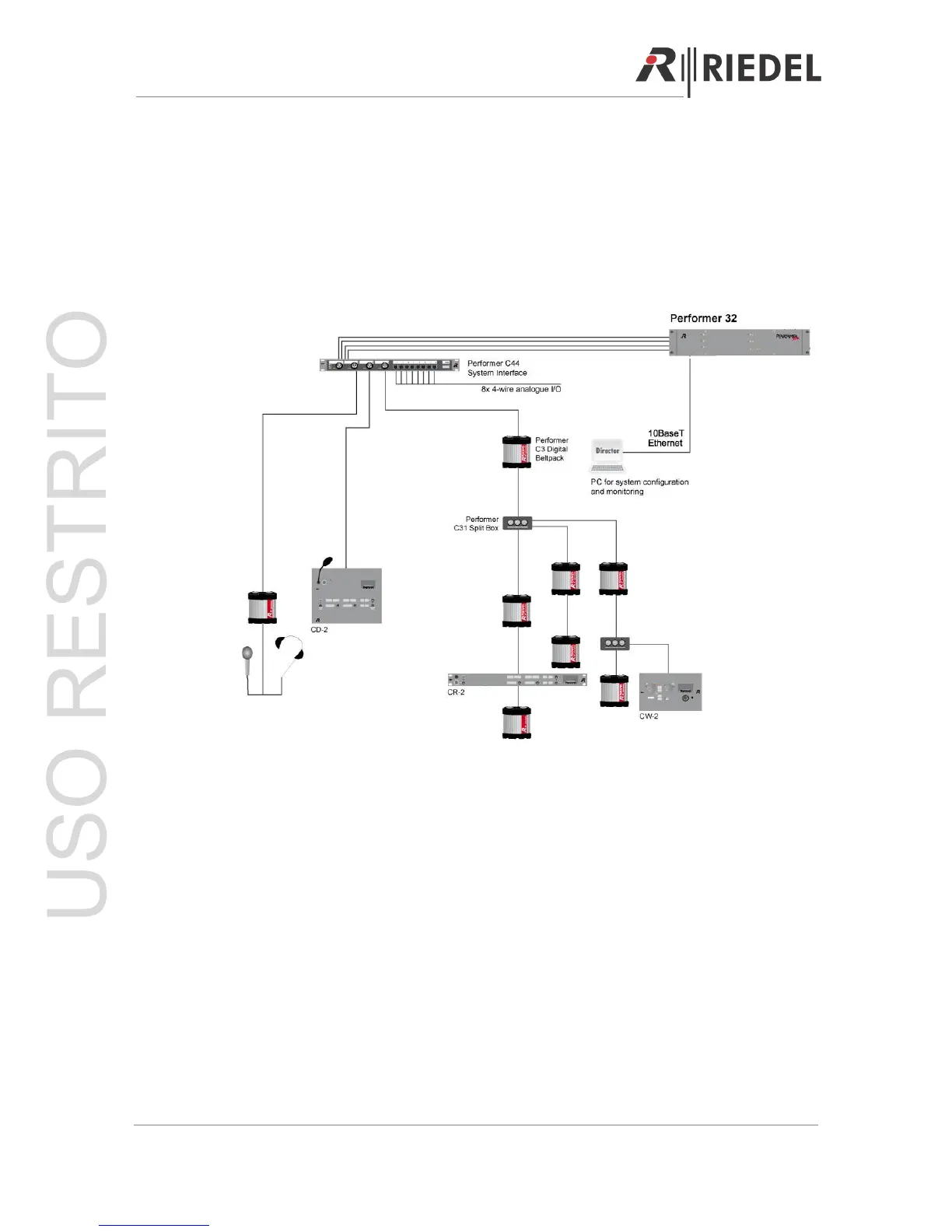

Integrate your digital Performer partyline seamlessly with your Artist/Performer intercom
matrix by using the C44 / C44plus system interface.
The C44 / C44plus provides four CAT-5 connectors (Artist I/O) on the rear corresponding with
the four digital partyline lines (Æ C44 / C44plus rear connectors).
9.2.1 Physical Connection
Simply connect the C44 / C44plus system interface using standard CAT-5 cable via the Artist
I/O rear ports to an Artist/Performer matrix CAT-5 client card.
Each C44 / C44plus Artist I/O port represents one digital partyline with its two channels. It is
not necessary to connect all four ports to the matrix if not all partylines need to communicate
with the matrix.
If you want to use both partyline channels of one line for communication with the matrix (e.g.
Line 1 Ch A & Ch B), please setup the matrix client card port in two-channel mode
(Æ Director Setup).
The tables on the following page explain the cabling between the C44 / C44plus and the
matrix for one and two channel mode. Of course a mixture of both is possible.
Page 67
