PERFORMER Digital Partyline, User Manual, Version 2.30
Page 34
5.2.6 CALL Key
When TALK A or TALK B is active, pressing the CALL key sends a CALL signal to the related
channel of the partyline. On all connected devices, the corresponding CALL signal will light up
e.g. C3 - TALK LED (green) alternates blinking with the CALL LED (orange).
5.2.7 GPI Key (Formerly SCALL)
If TALK A or TALK B is active, pressing the GPI key (formerly SCALL key) sends a command to
close the GPI-out to the devices on the corresponding channel. The GPI signal can also be
understood by an Artist/Performer system, if connected.
Note: The function carried out by the GPI key is not displayed on the C3!
5.3 User Elements Bottom

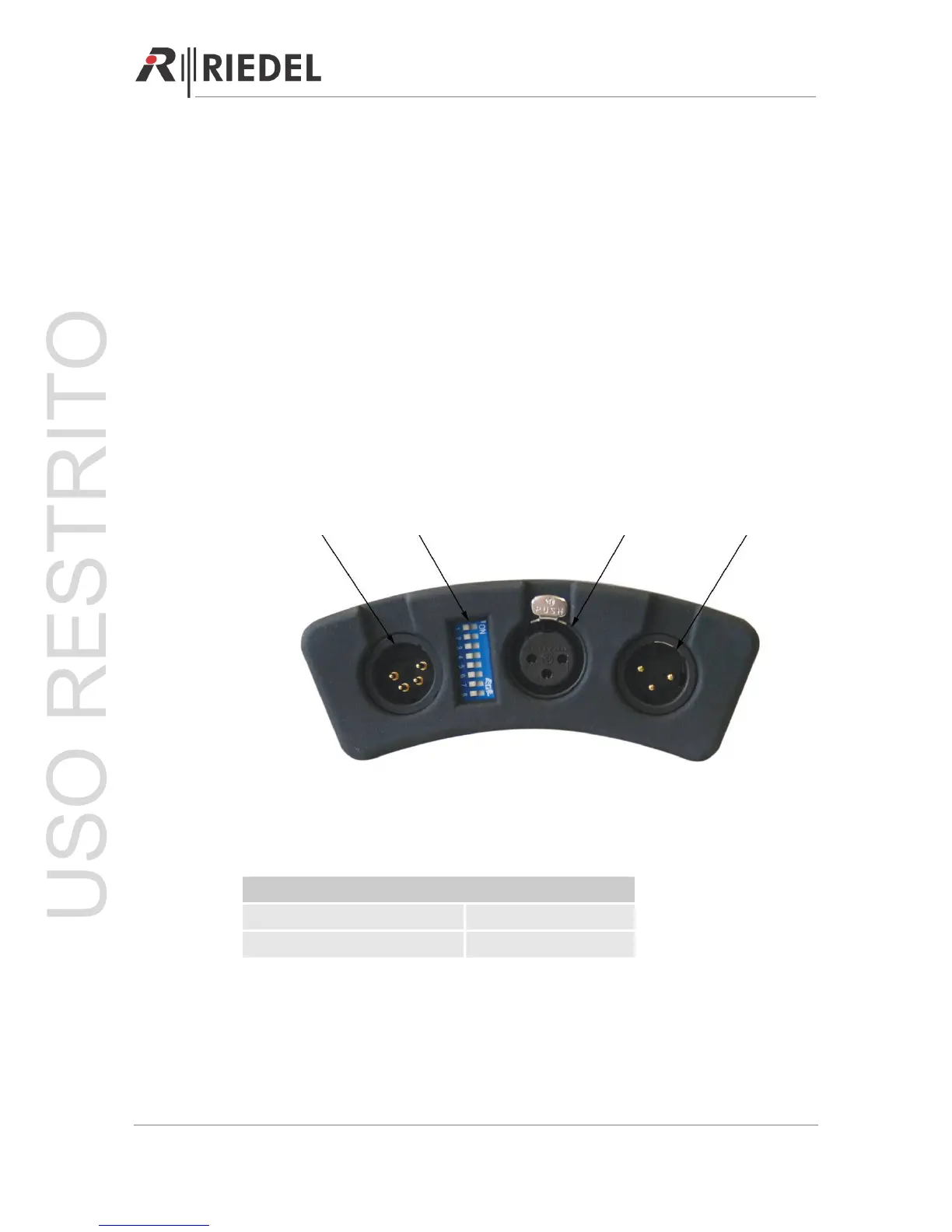

5.3.1 Headset Connector
The headset connector is 4-pole male XLR connector and supports headsets with electret
(~4.5V) or dynamic microphones, depending on the DIP switch setting.
Prerequisite
DIP SW 5 ON Electret
DIP SW 5 OFF Dynamic
Headset DIP Switch Upstream Port D rtownstream Po
