Riedel Performer C44plus - User Elements “Downstream“

PERFORMER Digital Partyline, User Manual, Version 2.30
Page 48

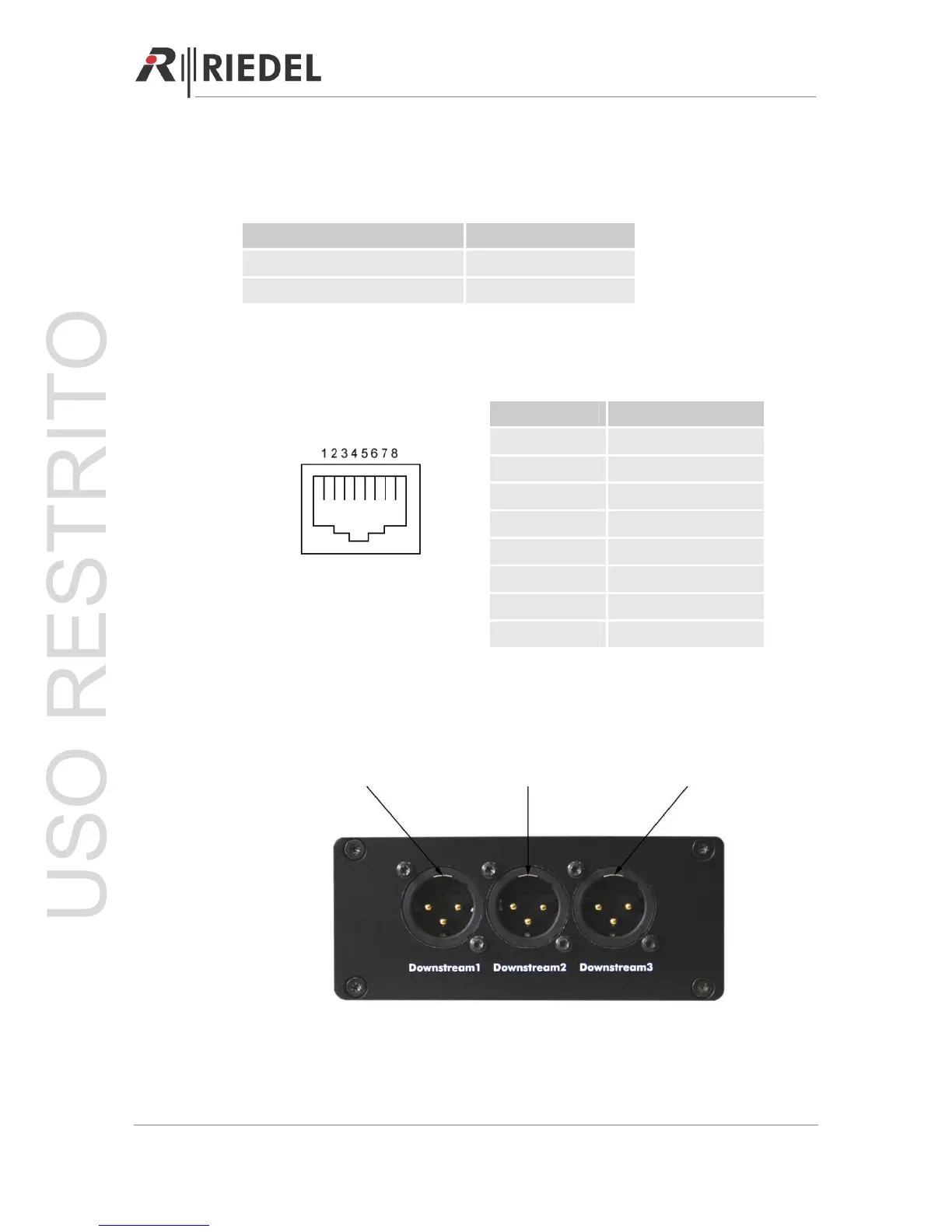

7.1.2 Power LED
The power LED indicates if the C31 is powered either over the partyline or via the external
power supply.
Status Power LED
Powered correctly Green 100%
No Power Green 0%
7.1.3 Pin Out DC ext. 48V
Pin Signal
1
2
3
4 48V
5 48V
6
7 GND
8 GND
DC in RJ 45
7.2 User Elements “Downstream”
Downstream Port 1 Downstream Port 2 Downstream Port 3
