PERFORMER Digital Partyline, User Manual, Version 2.30
Page 37
6 PERFORMER CW-2 WALL MOUNT SPK / HS STATION
The Performer CW-2 Wall Mount Speaker / Headset Station is designed for fixed indoor
installations. It comes with a standard plastic 4gang wall mount box.
The CW-2 is powered by the digital partyline. To refresh the power of the partyline in complex
installations or after long cable runs use the additional power-in connector.
6.1 Get Started
Release the CW-2 with the four wall mount screws carefully from the blue wall mount box
attached to the unit. Mount the wall mount box securely to the wall and insert the digital
partyline cables.
Strip the down- / upstream wire of the digital partyline with a wire stripper as specified and
connect it to the multi-pin connector of the CW-2 (ÆJ100 / J101 Connector Pin Out).
Mount the CW-2 carefully to the wall mount box in the wall. When powering up the system the
green power LED of the CW-2 should light up.

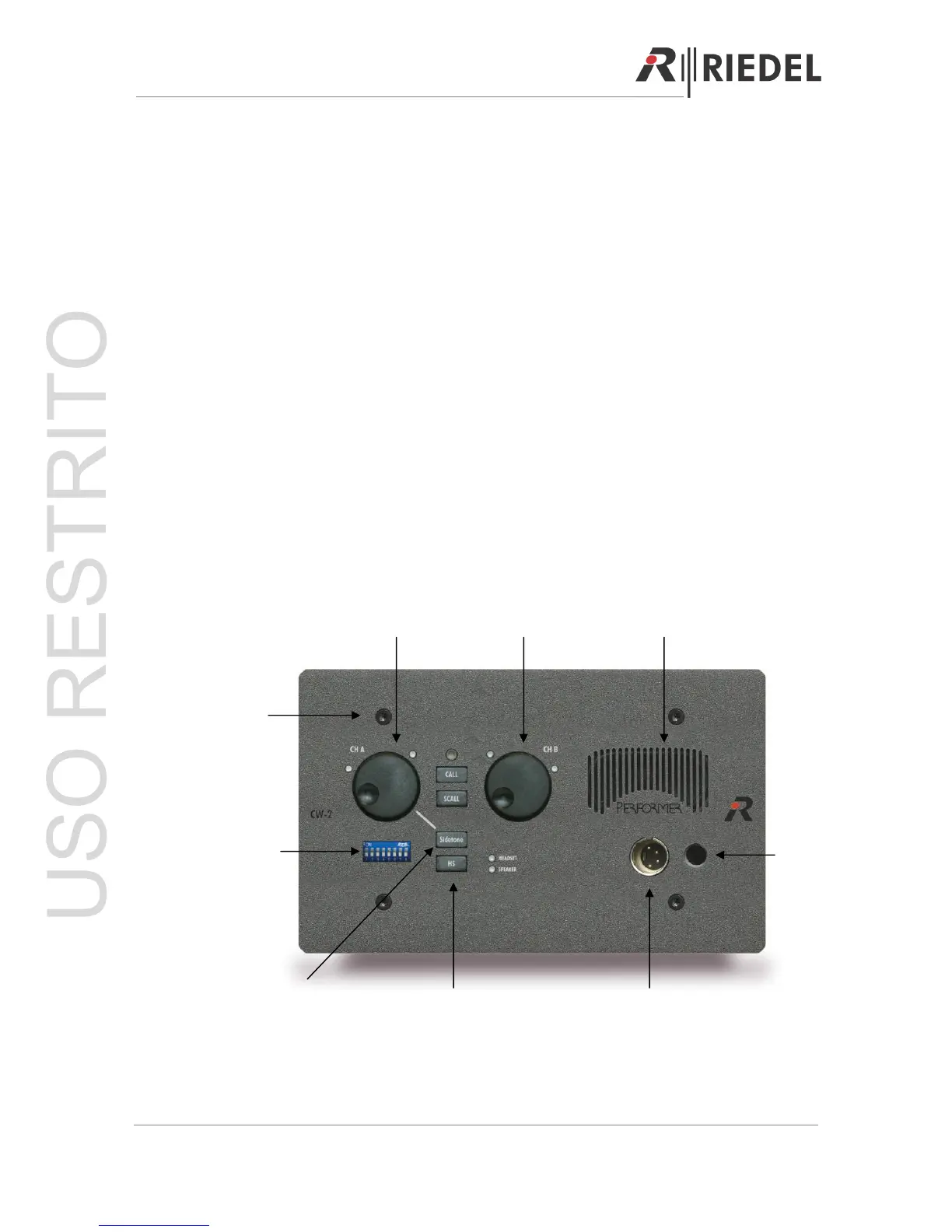

6.2 User Elements Front
DIP Switch
Wall
Mount
Screw
Channel Knob A
Channel Knob B Loudspeaker
HS / Speaker
Selection
Side Tone Key
Microphone
Connector
Headset
Connector
