CAUTION
Wrong connection may cause damages to the instrument or the device
connected to.
2. Turn on the instrument: press to start the instrument.
3. Scale selection: press 16V/10A at the front panel (characters below this key are
highlighted).
4. Voltage setting: press Volt and set the voltage to 16 V.

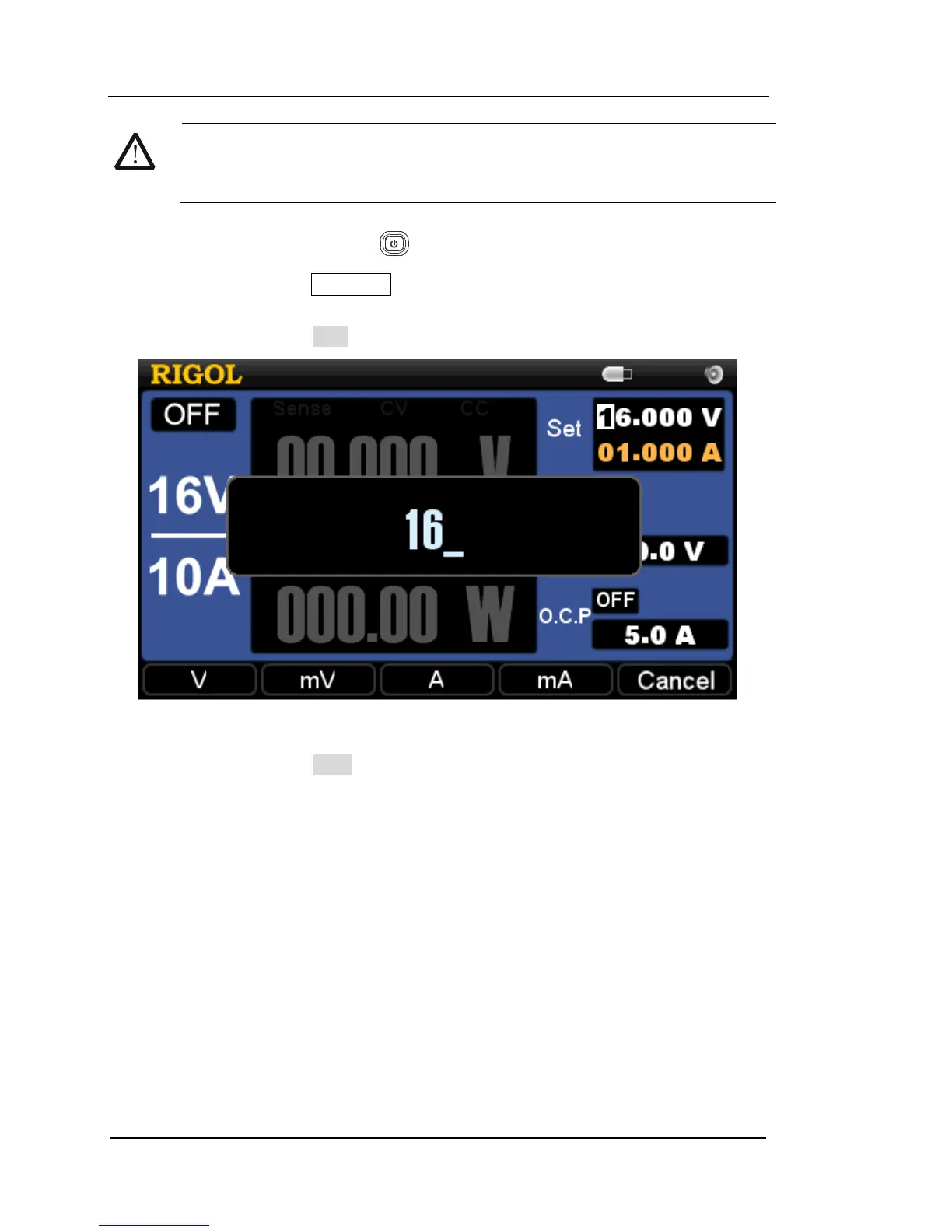

Figure 2-5 Voltage setting
5. Current setting: press Curr and set the current to 10 A.
