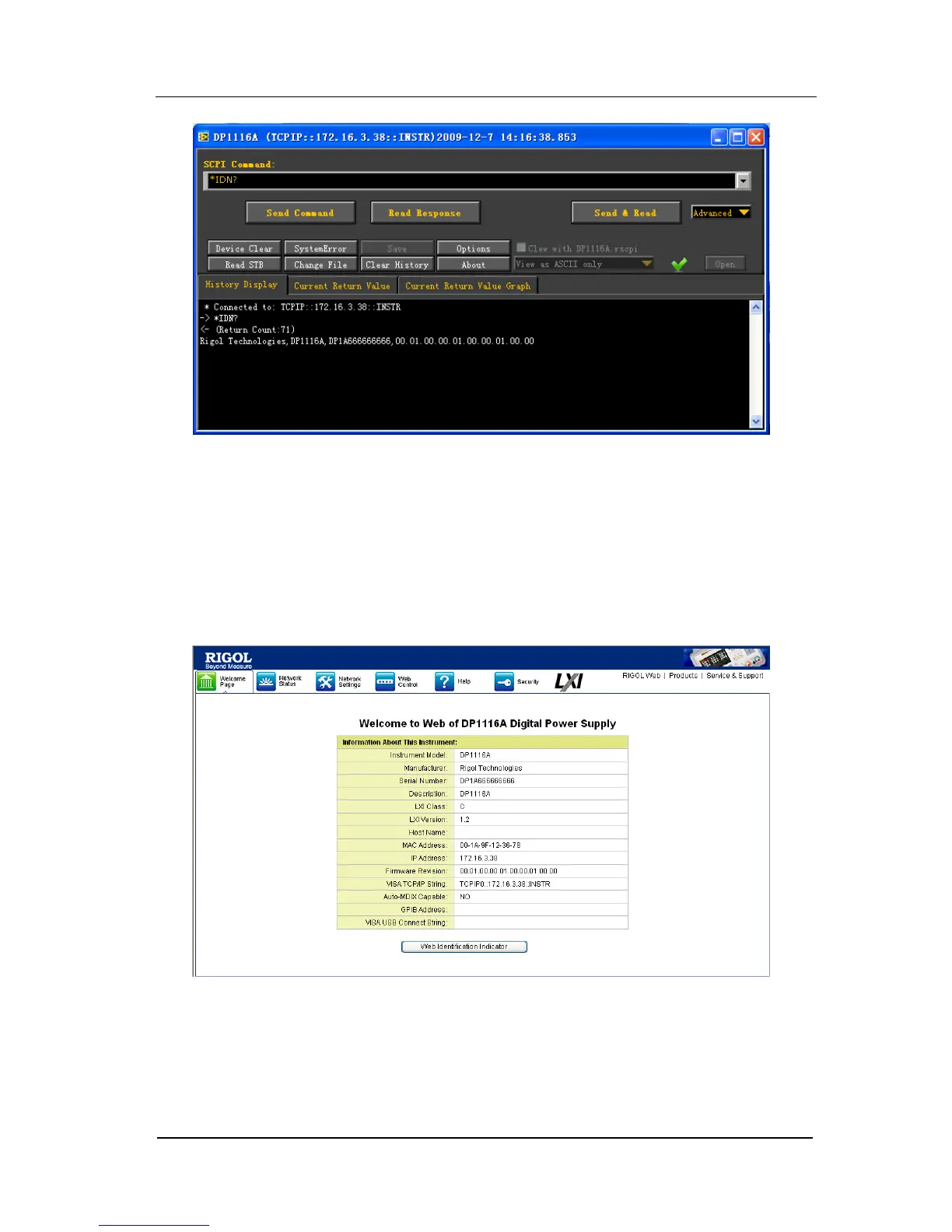

Figure 3-12 Read and write commands through LAN
(6) Load the LXI web page
The DP1116A conforms to the LXI-C standards (Version 1.2). You can load the
LXI web page through Ultra Sigma (right click the instrument name and select
“LXI-Web”), from this page you can view the instrument information, including
the instrument model, manufacturer, series number, description, MAC address
and IP address. See figure below:
Figure 3-13 LXI web page
