RIGOL Chapter 6 Operations and Measurements

6-52 MSO4000/DS4000 User’s Guide

Meas.Para. will change accordingly.

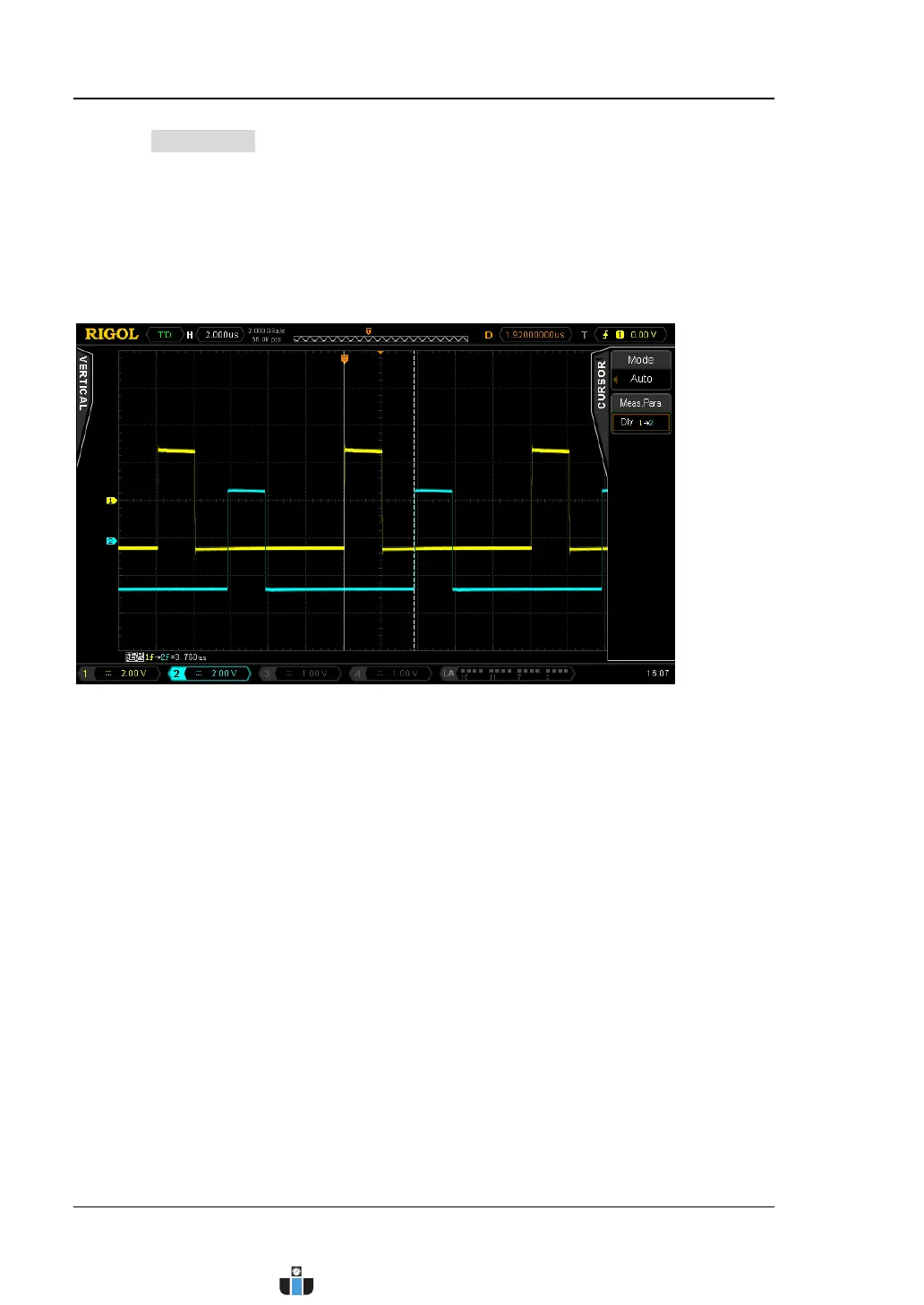

Measurement Example:

Measure the delay between the rising edges of CH1 and CH2 waveforms using “Auto

Measurement”.
