Rigol DS4024 User Manual

Chapter 1 Quick Start RIGOL
MSO4000/DS4000 User’s Guide 1-27

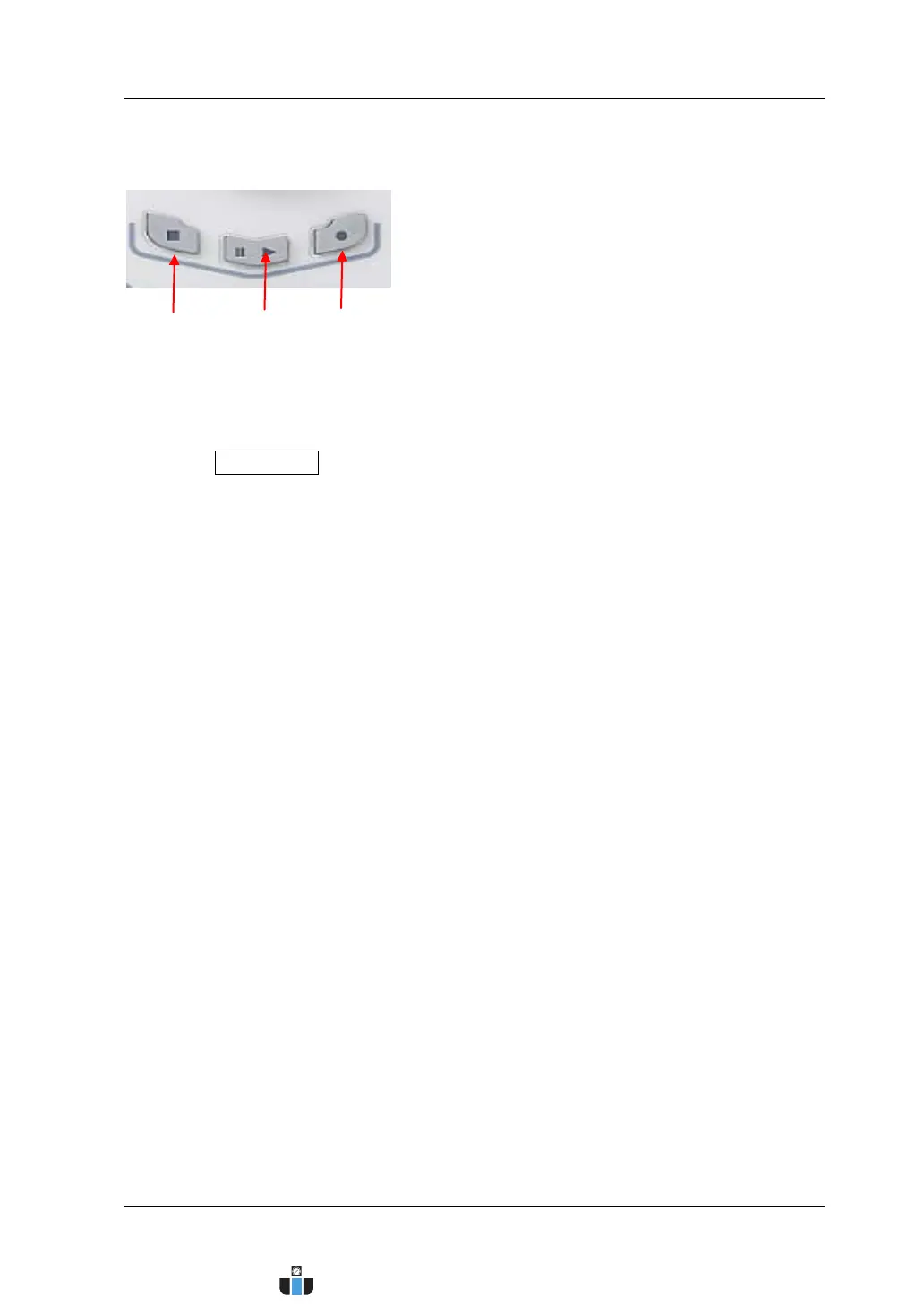

Record
 Record: press this key to start recording the waveform. The backlight is
illuminated in red and flashes. Besides, the backlight will also be illuminated in
red and flashes when the open mode (record constant on) is enabled until you
press RUN/STOP to stop the waveform recording.
 Stop: press this key to stop the waveform recording or waveform playback. The
backlight is illuminated in orange. Besides, the backlight will also be illuminated
in orange when the waveform recording or waveform playback finishes.
 Play/Pause: when the waveform recording is stopped or when the waveform
palyback is stopped or paused, pressing this key to start playing back the
waveform; the backlight is illuminated in yellow and flashes. Pressing this key
again to pause the playback; the backlight is illuminated in yellow.
Stop Play/Pause Record
