Chapter 8 Protocol Decoding RIGOL
MSO4000/DS4000 User’s Guide 8-11
the bus data to Hex, Decimal, Binary or ASCII. You can also press Format
continuously to switch the current display format.
Note: When the event table is turned on, the decoding data in the event table
will also be displayed in the format selected here.
9. Adjust the vertical offset
Press Offset and turn the multi-function knob to adjust the vertical position
of the bus. Pressing the knob can quickly reset the vertical offset (zero).
10. View the event table
The event table displays the detailed information of the decoding in table form
to view relatively longer decoded data.
Note: You can only view the event table and export the decoded data when the
display of the corresponding bus is turned on.
When BusStatus is set to “ON”, press Event Table to enter the event table
submenu. In this submenu, you can perform the following operations.
1) Press Event Table to turn on or off the event table. When the event table is

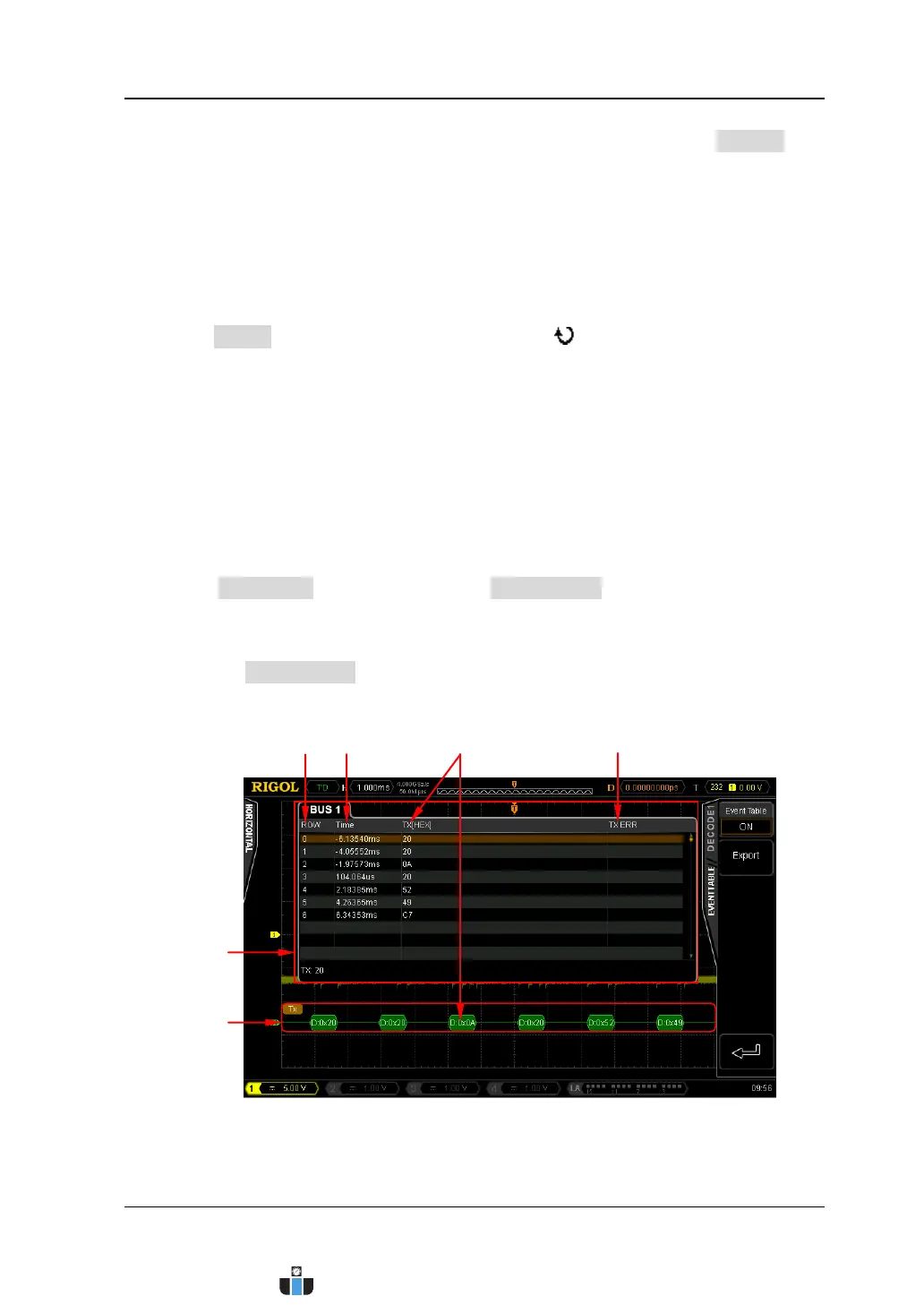

turned on, the interface is as shown in
Figure 8-3.
Figure 8-3 RS232 Decoding
Line Number
Time
TX Decoded Data
RS232 Bus
Event
TX Error
