RIGOL Chapter 8 Protocol Decoding
8-34 MSO4000/DS4000 User’s Guide
1) Press Event Table to turn on or off the event table. When the event table is
turned on, the interface is as shown in
Figure 8-7.

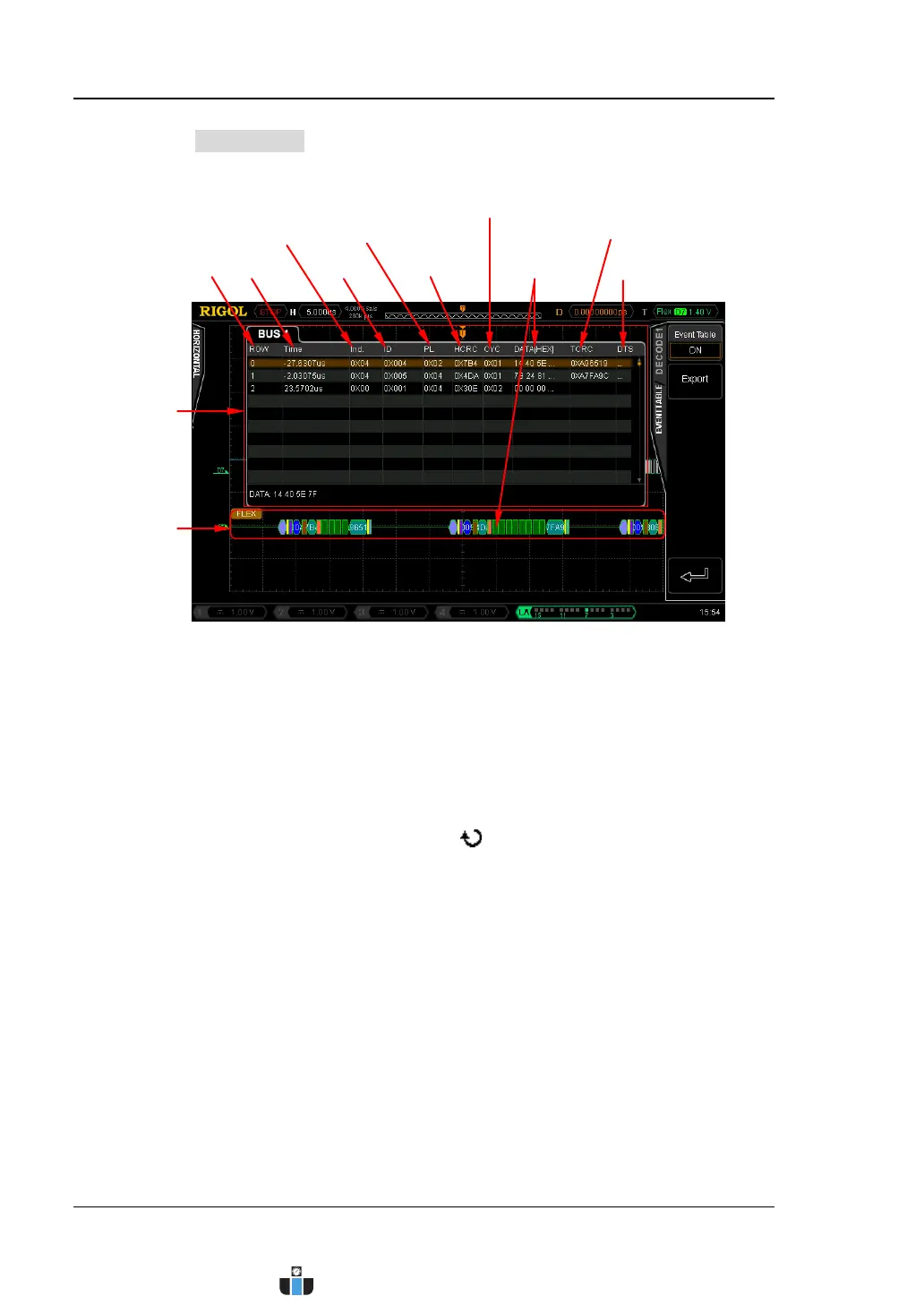

Figure 8-7 FlexRay Decoding
The event table displays the detailed decoding information (include the
decoded data as well as the corresponding line number, time, message ID,
header CRC (HCRC), tail CRC (TCRC) and error information) of the
waveform on the screen in time order. At most 10 lines of decoding
information can be displayed on one page (the line number starts from 0).
You can turn the multi-function knob
to select the specified line and
view the corresponding decoding information. The line currently selected is
highlighted with brown shading and the decoded data of that line is
dispalyed at the lower-left side of the event table.
Note:
The display format of the decoded data in the event table is determined
by the bus display format currently selected (refer to “Format”).
When adjusting the horizontal time base, the waveform displayed on
the screen will change and the total number of lines of decoding
information in the event table will change.
The decoded data information displayed in the bus is related to the
Line Number
Decoded Data
Serial Bus
Message ID
Frame ID
Payload Length
Header CRC
Tail CRC
Dynamic Tail Sequence
